| (S) How to: Remove RA's Ring w/o removing Bumper + Plasti-Dip It! | |
|---|---|
| Tweet Topic Started: Oct 5 2010, 10:53 AM (5,667 Views) | |
| Post #1 Oct 5 2010, 10:53 AM | jDM-Csar |
|

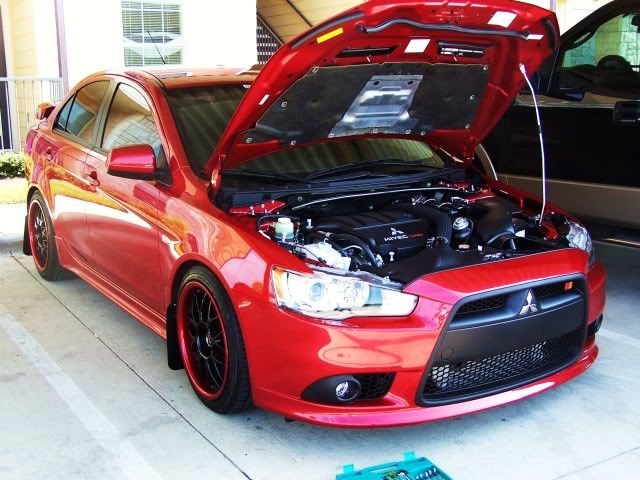

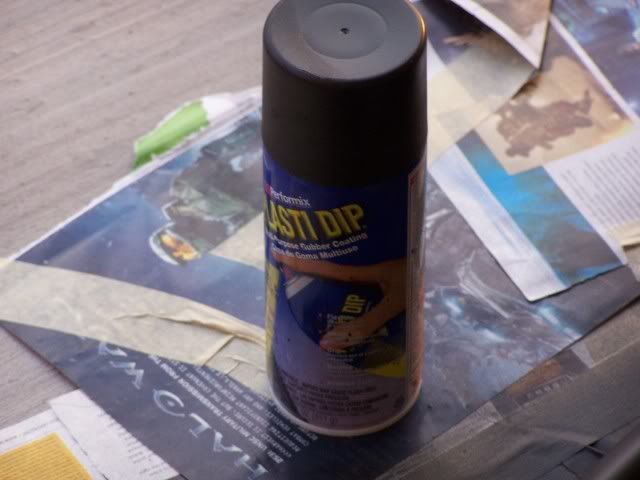

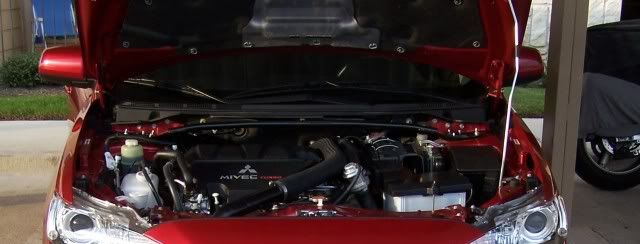

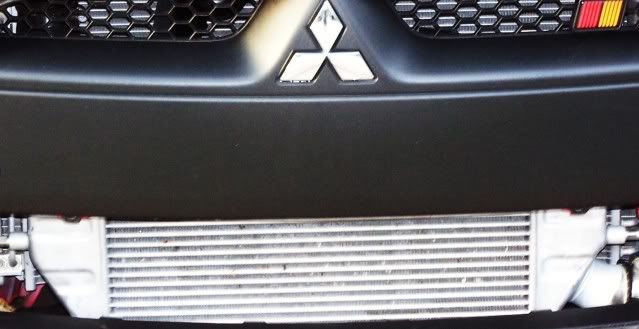

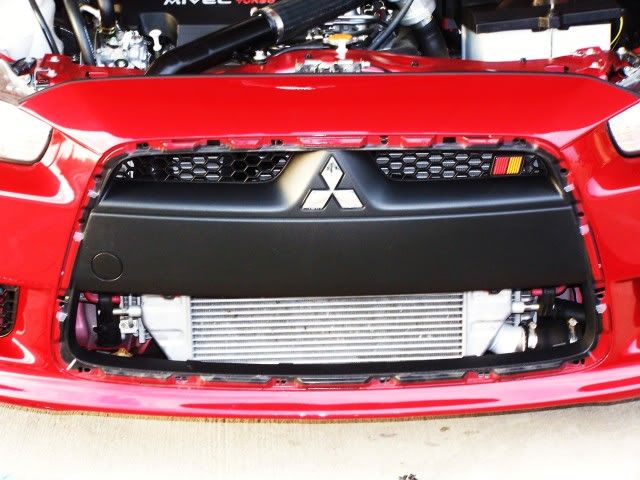

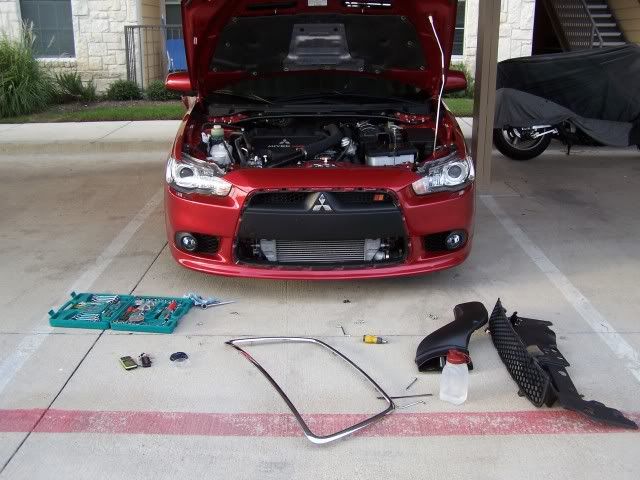

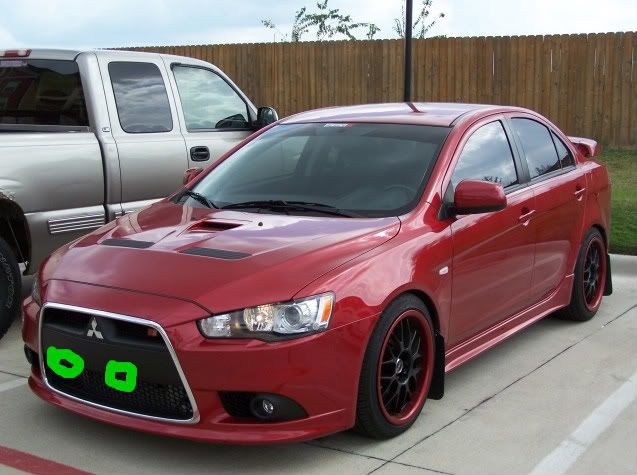

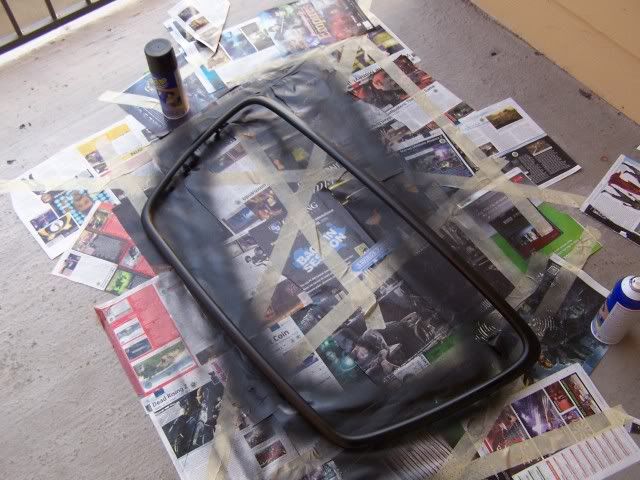

Hey wut is up guys! welle when i did this i didnt took that many pics but i will xplain where are the screws. ** Make sure you buy Plasti-Dip (Homedepot or Lowes') ** Before you start this HOW TO: make sure you Read it, Understand it and have time to complete the Work. ** Time of Proccess: I would say A Free Day for you... Cuz Paint gotta dry... Posted Image 1. First of all Start by Opening your Hood and Removing the Plastic Cover and the AirDuct to the Airfilter. as Shown: Posted Image 2. Then, Remove the two Screws holding the BOTTOM MESH in place: this is located Right on the center of the Chrome Piece Posted Image 3. Once The Two big screws are OUT, Start by pushing the BOTTOM MESH towards the inside of the Vehicle. (It is attached by Clips, it will not break **Note: Im not saying push as hard as u can.. just push spot by spot). When You finished uncliping all of the Bottom Mesh, lift the Center Piece of the bumper towards you (just a little bit) so we can take the Bottom Mesh OUT. (Should look Like this!) Posted Image 4. After the Bottom mesh is out u can take off the screws holding the bottom part of the Chrome Ring... 5. then you can start takin the TOP part of by lookin through the Hood where the plastic part was at. 6. Unscrew The top Mesh Through the same Spot and also the screws holding the Ring. *there should be around 6 Screws for the TOP and 7 for the Bottom! (im not quite sure) 7. Anyways once you remove the screws holding the ring from the TOP and BOTTOM u can notice the ring will b getting A LITTLE BIT loose. ****** LITTLE NOTE BEFORE REMOVING THE RING: The sides of the Ring are attached with some kind of TAPE u have to try a lil more when your in the center part of the ring. (the sides) 8. At this point Try to remove the Ring SLOWLY!!* part by part.. i would recomend start by the top left.. to top right.. n then go down @ the same moment.. while checking there are no screws still holdin it. (if you cant take it off ...it means there are still screws attached) Posted Image 9. Result: After your done.. IT should loook Like this!. Posted Image ****** Plasti Dip Time:!!! 1. After Ring is removed ... Get Windex and make sure u clean it right!!! 2. There is no need to sand or w/e... Plasti-Dip is perfect just spray n enjoy lol 3. incase you do not know what is plasti-dip: pic attached! Posted Image 4. Put down paper on the floor so u dont make a mess! lol 5. Start sparying a FULL COAT OF PLATI DIP. (make sure u do not do it TOOO CLOSE because it will drip...) * Maybe One OPEN FULL HAND AWAY FROM THE RING. 6. Allow around 15-20 mins to Dry for First Full COAT 7. Repeat Proccess 3-5 Times (15-20min Dry Time for Each Full Coat) Posted Image 8. and Finally After all your Coats are Dry... Just Let it Dry for a GOOOOOD TIME.. Maybe 3hrs or So... then Install Back Again... Same procces as takin it off.. 9. Car Should look like This! :D after Paint/Install! :) Posted Image Hope You guys Understand this HOW TO: Cesar! |
![]()
Red Demon
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
![]() Rally Red RalliArt Tuned by: DereK @ AWD - 281 Whp 294 tQ [x] XXR 18" [x] RRM Springs [x] RallyArmors [x] CBD-X Carbon Fiber Hood [x] NRG Carbon Fiber Hood Pins [x] Customized 8" LCD In-Dash Nav System [x] Rockford Fosgate System [x] RECARO Seats [x] Accolade: Evo X Spoiler [x] DC Sport Full Catback [x] AMS BOV [x] AMS Boost Pill [x] UR FMIC + UICP + LICP [x] UR Long DownPipe [x] UR Hi-Flow Cat [x] My Gallery | |
|
![]() |
| Post #2 Oct 5 2010, 11:00 AM | jerseygts |
| nice how-to im come back to this thread once i get my RA |
![]()
SoFLa Member
![]() ![]() ![]() ![]() ![]() ![]()
|
[x]OEM Evo X hood [x]Blacked out grill [x]Black roof[x] Black stock rims[x]Blacked out head lights[x] Blacked out taillights[x] Blacked out side markers [x]ARS Evo Nose [x]15% window tints [x]HIDS 8k headlights [x]HIDS 6k foglights [x]Fujitia SRI [x]Greddy SE exhaust [x]blue calipers [x]Eibach lowering springs [x] OEM rear diffuser![]() my ride My Facebook | |
|
![]() |
| Post #3 Oct 5 2010, 11:15 AM | boondoc |
| i thought i was gonna be the cool guy and not do this but recently i've been feeling the need to since i have so much time on my hands. :ermm: |
![]()
SoFLa Member
![]() ![]() ![]() ![]() ![]() ![]()
|
|
![]() |
| Post #4 Oct 5 2010, 12:40 PM | Karan921 |
| nice write up! |
SoFLa Member
![]() ![]() ![]() ![]() ![]() ![]()
|
![]() | |
|
![]() |
| Post #5 Oct 5 2010, 03:28 PM | erics |
| Cesar, you read my mind bro, I was already planning on doing this tomorrow! Great "how to" the only thing that I don't see is a list of necessary tools. Looks all you need is a screwdriver, is that right? |
![]()
SoFLa Member
![]() ![]() ![]() ![]() ![]() ![]()
|
|
![]() |
| Post #6 Oct 5 2010, 03:58 PM | EJ SoFLa |
| Very nicee write up, 5**** |
![]()
SoFLa Administrator
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
|
My 2008 GTS Mobile Me Photo Gallery South Florida Lancer Tuner Club Performance & Suspension: [x] Fujita SRI E [x] TWM Short Shifter w/ bushings [x] Injen Heat Shield [ Appeal: [x] 30,15 Tints [x] Red Neons in the interior [x] Ralliart Tail Lights [x] Door Stills [x] Custom Engine Appeal [x] Painted Break Calipers Black [x] Ralliart Style Grill [x] Backup Camera [x] X-Factor Vortex Generators [x] Evo X Shift Knob d [x] Quick Hood Lift Kit [x] PlayStation 2
| |
|
![]() |
| Post #7 Oct 5 2010, 05:35 PM | jDM-Csar |
|
just need a SMALL Screw Driver (STAR) and a key to take those two bolts on the bottom grill... u'll see them.. lol idk wat are they call.. =/ but yeh pretty much just the screw driver. |
![]()
Red Demon
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
![]() Rally Red RalliArt Tuned by: DereK @ AWD - 281 Whp 294 tQ [x] XXR 18" [x] RRM Springs [x] RallyArmors [x] CBD-X Carbon Fiber Hood [x] NRG Carbon Fiber Hood Pins [x] Customized 8" LCD In-Dash Nav System [x] Rockford Fosgate System [x] RECARO Seats [x] Accolade: Evo X Spoiler [x] DC Sport Full Catback [x] AMS BOV [x] AMS Boost Pill [x] UR FMIC + UICP + LICP [x] UR Long DownPipe [x] UR Hi-Flow Cat [x] My Gallery | |
|
![]() |
| Post #8 Oct 5 2010, 05:35 PM | jDM-Csar |
|
![]()
Red Demon
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
![]() Rally Red RalliArt Tuned by: DereK @ AWD - 281 Whp 294 tQ [x] XXR 18" [x] RRM Springs [x] RallyArmors [x] CBD-X Carbon Fiber Hood [x] NRG Carbon Fiber Hood Pins [x] Customized 8" LCD In-Dash Nav System [x] Rockford Fosgate System [x] RECARO Seats [x] Accolade: Evo X Spoiler [x] DC Sport Full Catback [x] AMS BOV [x] AMS Boost Pill [x] UR FMIC + UICP + LICP [x] UR Long DownPipe [x] UR Hi-Flow Cat [x] My Gallery | |
|
![]() |
| Post #9 Oct 6 2010, 01:10 AM | boondoc |
| I wish i could get paid like that, lol. |
![]()
SoFLa Member
![]() ![]() ![]() ![]() ![]() ![]()
|
|
![]() |
| Post #10 Oct 6 2010, 12:26 PM | jDM-Csar |
| lol ;) yeh man.. life after army is good lol! :D |
![]()
Red Demon
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
![]() Rally Red RalliArt Tuned by: DereK @ AWD - 281 Whp 294 tQ [x] XXR 18" [x] RRM Springs [x] RallyArmors [x] CBD-X Carbon Fiber Hood [x] NRG Carbon Fiber Hood Pins [x] Customized 8" LCD In-Dash Nav System [x] Rockford Fosgate System [x] RECARO Seats [x] Accolade: Evo X Spoiler [x] DC Sport Full Catback [x] AMS BOV [x] AMS Boost Pill [x] UR FMIC + UICP + LICP [x] UR Long DownPipe [x] UR Hi-Flow Cat [x] My Gallery | |
|
![]() |
| Post #11 Oct 6 2010, 11:55 PM | goof |
| Woahhhhh. Ej posted..... |
mod of the year
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
|
![]() |
| Post #12 Oct 7 2010, 03:01 PM | erics |
| Great walk through! Saved me from having to pull off my entire bumper!!!!! |
![]()
SoFLa Member
![]() ![]() ![]() ![]() ![]() ![]()
|
|
![]() |
| Post #13 Oct 26 2010, 11:35 AM | Age09RA |
| great write up!!!! 5* |
SoFla Mod
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
![]() [x] custom cobb sri [x] forge diverter [x] ultimate-racing licp [x] ultimate-racing uicp [x] ultimate-racing downpipe [x] ultimate-racing testpipe [ ] fmic [ ] cat-back exhaust [ ] ecu flash | |
|
![]() |
| Post #14 Oct 26 2010, 11:44 AM | erics |
Now you need to do yours! I love the way mine turned out, yours would look sick with the color scheme on your wheels!!!!!!! |
![]()
SoFLa Member
![]() ![]() ![]() ![]() ![]() ![]()
|
|
![]() |
| Post #15 Oct 26 2010, 12:09 PM | Age09RA |
| i kno...lol...im moving back 2 florida in a month! so ill jus have tony help me do it or something |
SoFla Mod
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
![]() [x] custom cobb sri [x] forge diverter [x] ultimate-racing licp [x] ultimate-racing uicp [x] ultimate-racing downpipe [x] ultimate-racing testpipe [ ] fmic [ ] cat-back exhaust [ ] ecu flash | |
|
![]() |
| Post #16 Oct 26 2010, 12:53 PM | jDM-Csar |
FUCKIN NIC!! :D |
![]()
Red Demon
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
![]() Rally Red RalliArt Tuned by: DereK @ AWD - 281 Whp 294 tQ [x] XXR 18" [x] RRM Springs [x] RallyArmors [x] CBD-X Carbon Fiber Hood [x] NRG Carbon Fiber Hood Pins [x] Customized 8" LCD In-Dash Nav System [x] Rockford Fosgate System [x] RECARO Seats [x] Accolade: Evo X Spoiler [x] DC Sport Full Catback [x] AMS BOV [x] AMS Boost Pill [x] UR FMIC + UICP + LICP [x] UR Long DownPipe [x] UR Hi-Flow Cat [x] My Gallery | |
|
![]() |
| Post #17 Oct 26 2010, 02:27 PM | Age09RA |
| yezzir!!! |
SoFla Mod
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
![]() [x] custom cobb sri [x] forge diverter [x] ultimate-racing licp [x] ultimate-racing uicp [x] ultimate-racing downpipe [x] ultimate-racing testpipe [ ] fmic [ ] cat-back exhaust [ ] ecu flash | |
|
![]() |
| Post #18 Oct 26 2010, 09:44 PM | cuishy43 |
| your coming back!?!?!? |
Cuishy:D
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
CUISHY!![]() [x] Blacked Out Taillights [x] 6000k DDMTuning.com Fog & Low HID's [x] 2 10-Inch Subwoofers [x] Cuishy Taillight Sticker [x] Ledunderbody.com Underbody Neons [x] Painted Engine Covers [x] Interior Neons [x] Blacked Out Front [x] Black Rims [x] Fujita Short Ram Intake [x] X-Factor Vortex Generators [x] Greddy SE Exhaust System [x] Blue LED City Lights [x] Evo X Hood [x] AIT C-Weapon Body Kit [x] Global Blue Paintjob [x] Eibach Sportline Lowering Springs [x] Police Siren | |
|
![]() |
| Post #19 Oct 26 2010, 10:21 PM | Age09RA |
| yup! hopefully by nov 27th |
SoFla Mod
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
![]() [x] custom cobb sri [x] forge diverter [x] ultimate-racing licp [x] ultimate-racing uicp [x] ultimate-racing downpipe [x] ultimate-racing testpipe [ ] fmic [ ] cat-back exhaust [ ] ecu flash | |
|
![]() |
| Post #20 Oct 27 2010, 07:46 AM | jDM-Csar |
| badass bro! for guud? or just vacations? |
![]()
Red Demon
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
![]() Rally Red RalliArt Tuned by: DereK @ AWD - 281 Whp 294 tQ [x] XXR 18" [x] RRM Springs [x] RallyArmors [x] CBD-X Carbon Fiber Hood [x] NRG Carbon Fiber Hood Pins [x] Customized 8" LCD In-Dash Nav System [x] Rockford Fosgate System [x] RECARO Seats [x] Accolade: Evo X Spoiler [x] DC Sport Full Catback [x] AMS BOV [x] AMS Boost Pill [x] UR FMIC + UICP + LICP [x] UR Long DownPipe [x] UR Hi-Flow Cat [x] My Gallery | |
|
![]() |
