| P90tr; Belgium Personal Defense Weapon | |
|---|---|
| Tweet Topic Started: Apr 25 2008, 02:35 PM (3,763 Views) | |
| parnthep | Apr 25 2008, 02:35 PM Post #1 |
|
Administrator
|
ข้อมูลอ้างอิงจาก Modern Firearms http://world.guns.ru/smg/smg13-e.htm FN P90 personal defense weapon / submachine gun (Belgium) ![]() FN P90 personal defense weapon / submachine gun in basic configuration, left side ![]() FN P90 personal defense weapon / submachine gun in basic configuration, right side ![]() FN P90 TR (triple rail version) personal defense weapon / submachine gun, with installed accessories including optical sight on top rail, flashlight on left rail, and silencer on the barrel ![]() FN PS90 - a civilian semi-automatic only version of P90 with long barrel ![]() Bottom view on the filed FN P90 magazine, showing position of the stored cartridges and cartridge in feed position ![]() FN P90 partially disassembled Caliber: 5.7x28mm SS190 Overall length: 500 mm Barrel length: 263 mm Magazine capacity, 50 rounds Weight: 2.54 kg empty; 3 kg loaded with magazine with 50 rounds Effective range: 200 meters Rate of fire: 900 rounds per minute The FN P90 submachine gun (SMG) was developed in the late 1980s as a personal defense weapon for the troops whose primary activities does not include small arms, such as vehicle and tank crew members, artillery crews etc. Standard pistols and submachine guns chambered for pistol rounds were proved ineffective against enemy soldiers, wearing body armor; Therefore FN designers first developed a new round with enhanced penetration, initially known as SS90. To achieve necessary high penetration while keeping recoil impulse low, FN used a small-bore approach, creating a round that looked much like the scaled down 5,56NATO round. It must be noted that similar concepts were tried in other countries, most notably in USA, several decades before FN; for example, US Army tested M1 carbines chambered for .221 Johnson Spitfire round back in late 1950s; later on, Colt produced its .22 SCAMP and 5,6x30 MARS ammunition for special SCAMP machine pistol and MARS "mini assault rifle" (a scaled-down M16 rifle) respectively. It must be noted that 5,6x30 MARS round was in a sense a direct predecessor to 5,7x28 FN SS90 round, although the latter featured slightly lighter and faster bullet. By late 1980s a concept of a small-bore, low-impulse "personal defense weapon" (PDW) with good accuracy and lethality at ranges of up to 200-250 meters was well established, although there were no weapons adopted for service yet. FN decided to follow this concept and to create its own PDW using clean sheet approach. Basic ideas used for this development, designated as "Project 9.0", included the following: minimal size and weight of weapon; large magazine capacity; complete ambidexterity; ease of use and maintenance. To save on size and weight, FN designers put new weapon into compact and lightweight stock of bullpup layout, made of impact-resistant polymer. The high-capacity magazine also was made from semi-translucent polymer, and holds 50 rounds in two rows. To made loaded weapon as compact as possible, FN designers followed the idea of American designer Hall, and placed the magazine above the barrels, with cartridges stored in horizontal position with bullets pointing to the left. While Hall system employed a rotary feed unit, operated by the bolt, to put new cartridge in line with the barrel, FN designers incorporated a stationary helical ramp into each magazine, which rotates cartridge for 90 degrees prior to placing it into feed lips. Complete ambidexterity was achieved by using ambidextrous controls (including dual charging handles and dual back-up open sights), and bottom ejection. Finally, simplicity of aiming was achieved by use of integral reflex type collimating sight and integral laser aiming module (LAM). Resulting weapon appeared in around 1990 as FN P90 personal defense weapon, along with improved 5,7x28 SS190 ammunition, which replaced polymer-cored bullets with heavier dual-core (steel / aluminum) bullets with better penetration against body armor. Several other types of ammunition were developed for this weapon, including tracer, subsonic ball and soft-core training ball. First sales of P90 were made to Saudi Arabia in early 1990s; today it is believed that FN sold more than 20 000 of P90's to a wide variety of law enforcement agencies and military special operation units worldwide, including US Secret Service, Austrian Army rangers, Dutch BBE special operations forces, Belgian Army and others. Most interesting fact about adoption of P90 is that so far it has been adopted for the role, directly opposite to its original niche of "personal defense weapon". In fact, most services and agencies that adopted P90 use it for offensive roles, as a specialist or even a primary weapon for various assault teams, and other "professional small-arms users", as opposed to military personnel which primary functions do not include use of small arms. In around 1995 FN supplemented the P90 with pistol, firing the same 5,7x28 ammunition, designated as FN Five-seveN. Recently, FN also introduced a civilian version of P90, designated as PS90 carbine. This is a self-loading weapon with longer barrel (408 mm / 16"). FN P90 personal defense weapon is blowback operated, selective-fired weapon which fires from closed bolt. The firing is controlled by a removable trigger unit with conventional hammer. A manual safety is located directly below the trigger. Magazine lies at the top of the weapon, feeding from front-to-back, with spiral ramp built into the "rear" part of the magazine. Spent cartridges are ejected straight down through the chute, which exits just behind the pistol grip. The standard sighting equipment includes a non-magnifying collimating sight with "ring and dot" illuminated aiming reticule. Back-up open sights are provided at either side of the primary collimating sight. The so-called P90 USG version is provided with two additional Picatinny rails at either side of the collimating sight base; FN also offers a version with no standard sighting equipment; user has to make its own choice of day and/or night sights and additional equipment, which can be installed on three Picatinny rails - top, left and right. This version is designated as P90 TR (triple rail). The front part of the forward handgrip on P90 is shaped as hand protector, and it can contain integral laser aiming module, which sends either visible or IR laser beam to mark the intended target. For special missions P90 can be fitted with a special silencer, which is used in conjunction with special subsonic ammunition. Edited by parnthep, Apr 26 2008, 12:19 PM.
|
![]() |
|
| parnthep | Apr 25 2008, 02:40 PM Post #2 |
|
Administrator
|

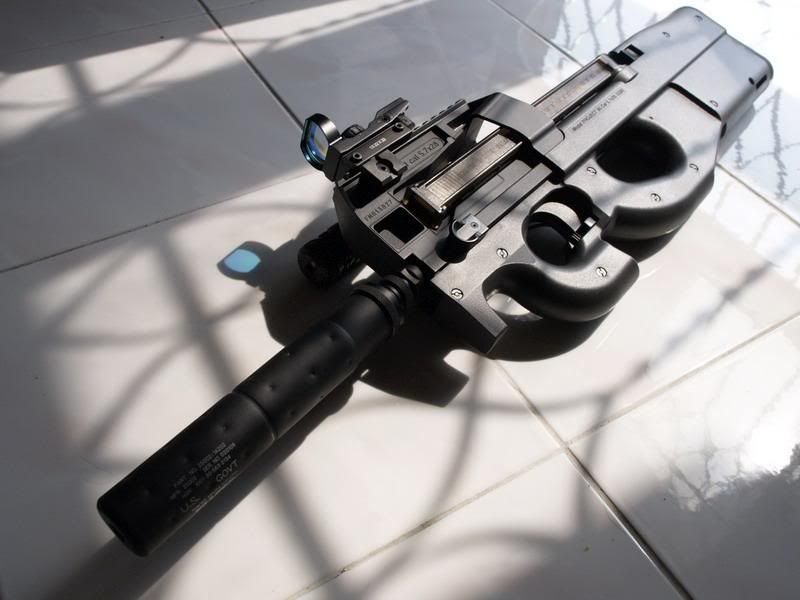

![]() รับเลี้ยงต่อจากเพื่อนพ้องน้องพี่มาคับ เจ้าของเก่าเลี้ยงดูได้ดีมั่กๆ น้องพีมาแบบใหม่กริ๊บ บอกว่าเป็นของใหม่แกะกล่อง ป๋มก็เชื่อนะ เพราะป๋มหาริ้วรอยแทบไม่เจอแม้แต่น้อย ![]() ไส้ในปืนโดนโมมาเกือบเต็มสูตร ด้วยชุดแต่งของการ์ดเดอร์และโพรมีเธียส แถมติดท่อรีดแมดบูล ฟามเร็วน่าจะอยู่ที่สามร้อยปลายๆ กระสุนวิ่งเป็นสาย ระยะต่ำกว่า20เมตร กลุ่มกระสุนดีทีเดียวกคับ |
![]() |
|
| parnthep | Apr 25 2008, 02:44 PM Post #3 |
|
Administrator
|

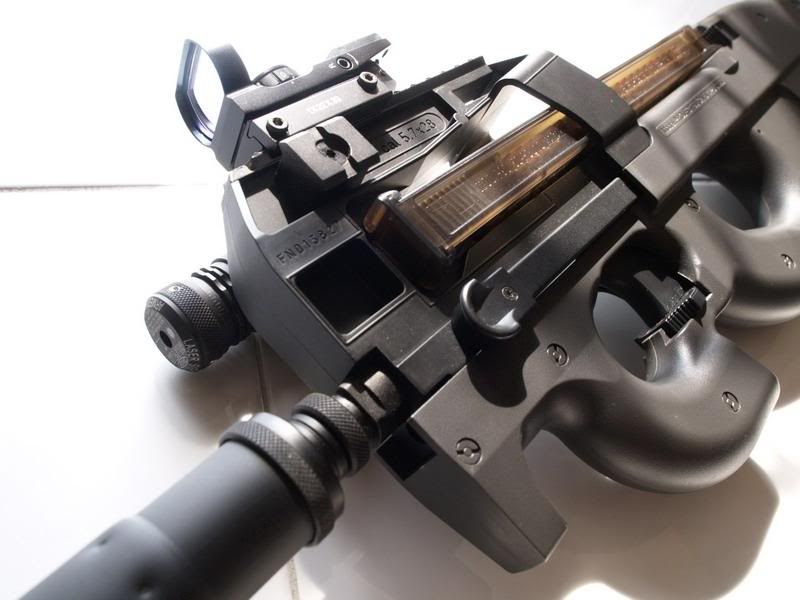

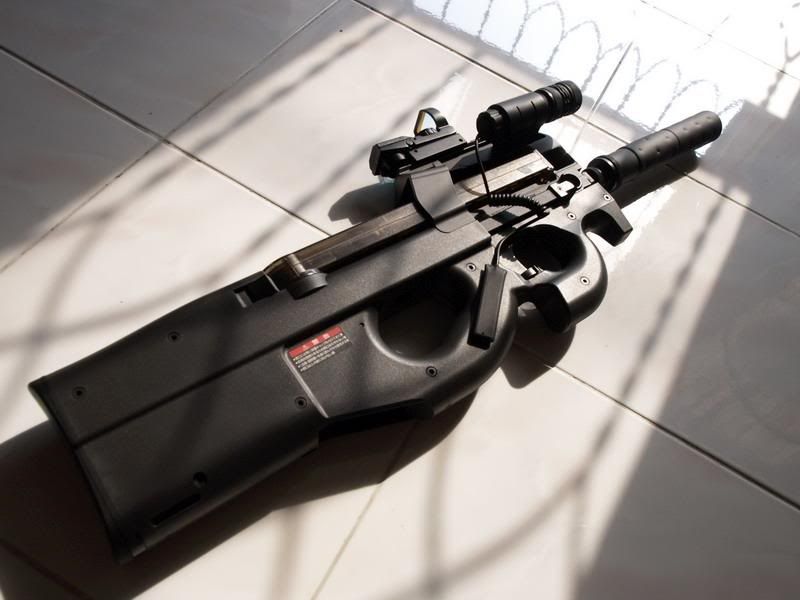

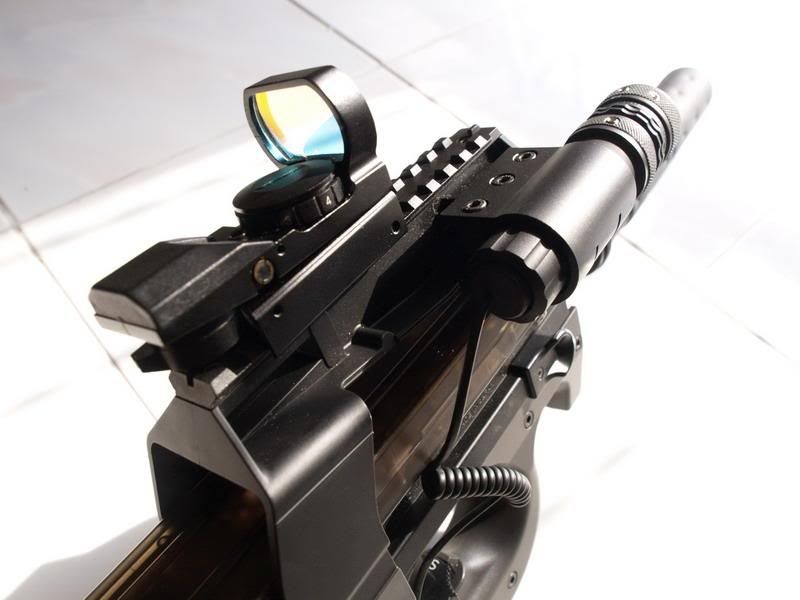

ดอทที่ได้มาพร้อมปืนตอนแรกเป็น EO Tech แต่ป๋มดูแล้วมันไม่เข้ากับพี90เท่าไหร่ เลยเปลี่ยนเป็นซีมอร์ไปชั่วคราว อีโอเทค ป๋มว่าจะเอาไปใส่กับ Mk.12 SPR ตัวที่เหมาะกับพี90 ป๋มคิดว่าน่าะเป็นพวกดอทสโคปทรงสวยๆ ![]() โครงการต่อไป ป๋มวางแผนจะเปลี่ยนท่อรีดให้ยาวขึ้น เอาให้เสมอหรือสั้นกว่าไซเลนเซอร์นิดนึง หวังว่ากลุ่มกระสุนจะดีขึ้น รางไนโตรจะเป็นรายการต่อไป ถ้าหาของได้นะคับ
|
![]() |
|
| parnthep | Apr 25 2008, 02:48 PM Post #4 |
|
Administrator
|

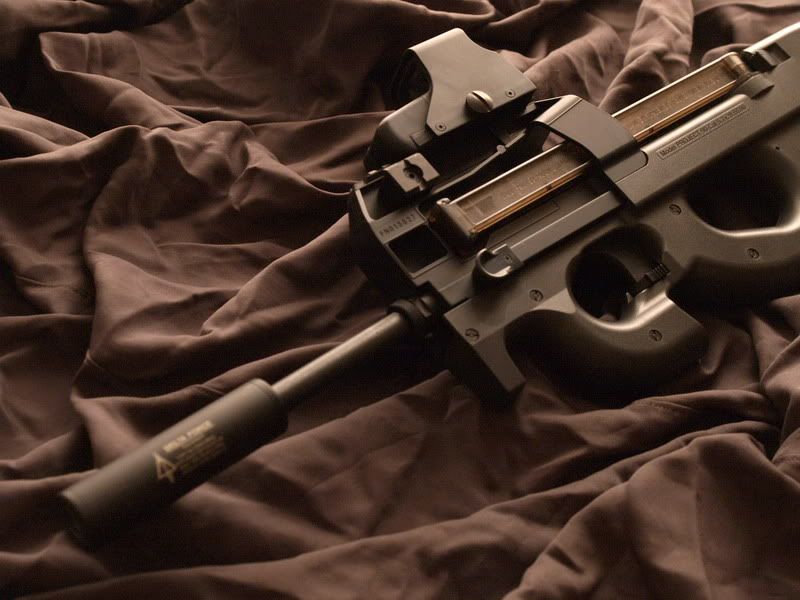

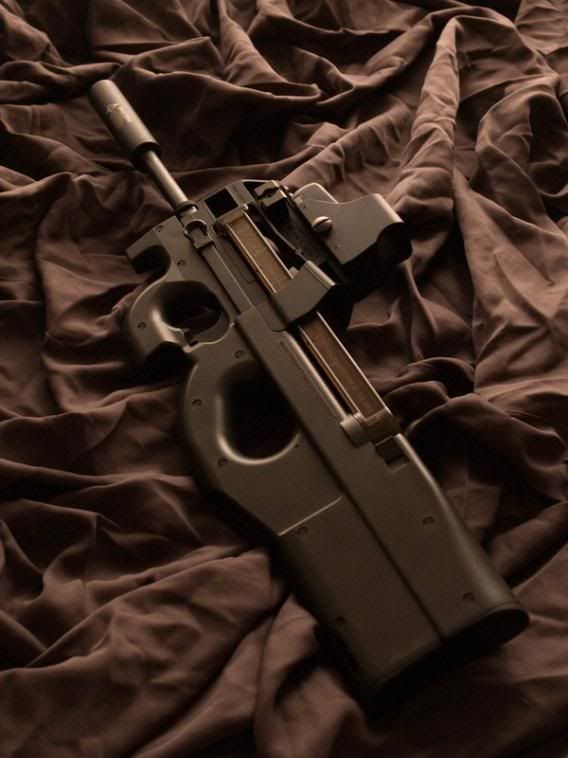

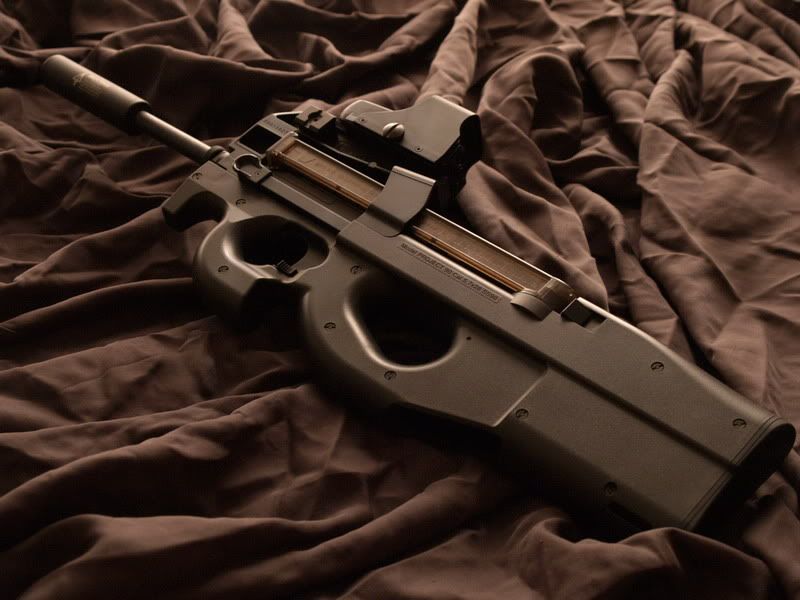

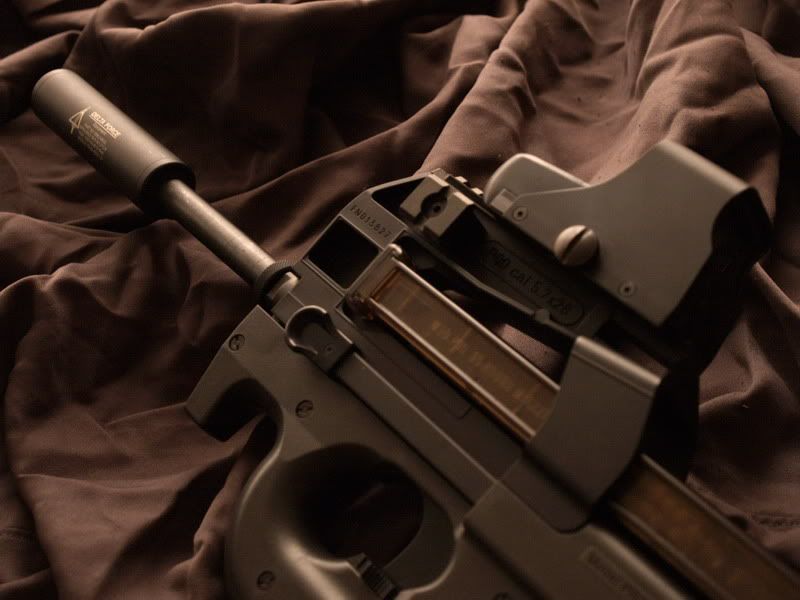

ภาพชุดใหม่เพิ่มเติมคับ คราวนี้P90TRของมารูอิ ป๋มถอดไซเลนเซอร์ที่ติดมากับปืนออก แล้วใส่ท่อนอกติดไซเลนเซอร์4นิ้วแทน อีโอเทคที่ติดเป็นรุ่นหน้าสั้นของฮ่องกงคับ ติดแล้วสวยงามหรือไม่เพียงใด ดูได้เลยคับ ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
![]() |
|
| parnthep | Apr 25 2008, 02:53 PM Post #5 |
|
Administrator
|

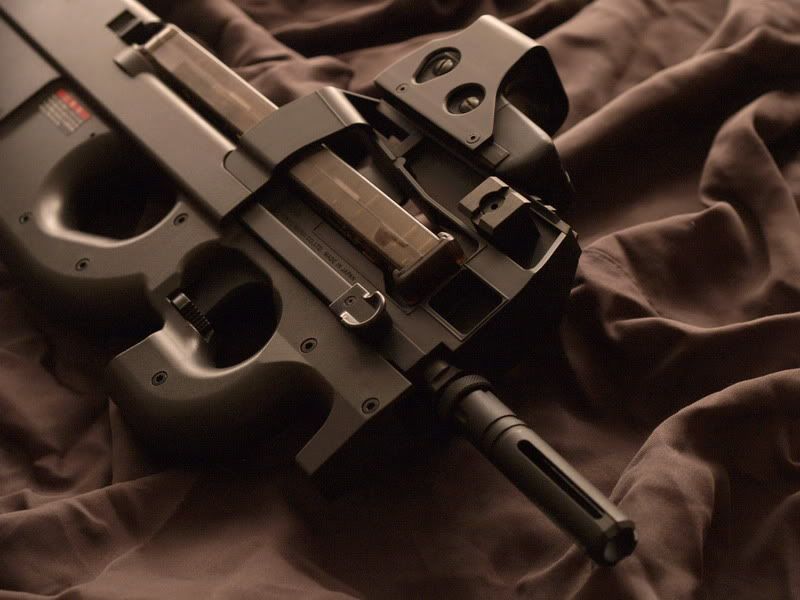

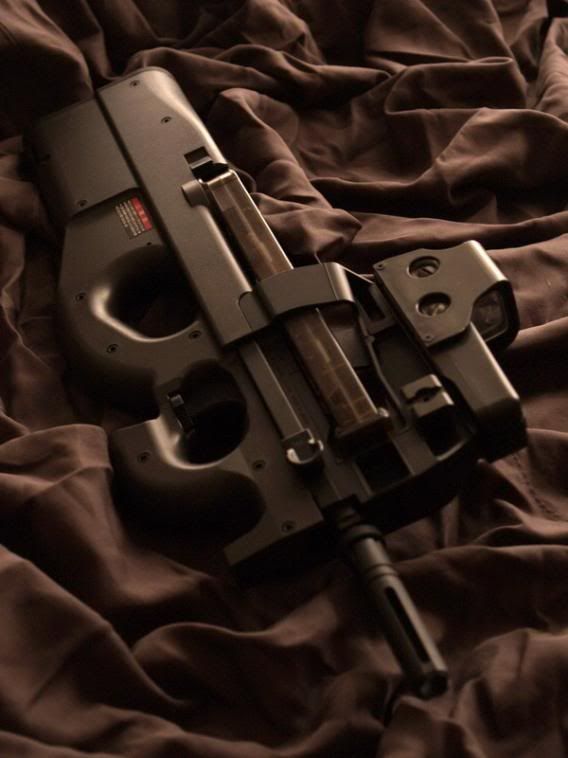

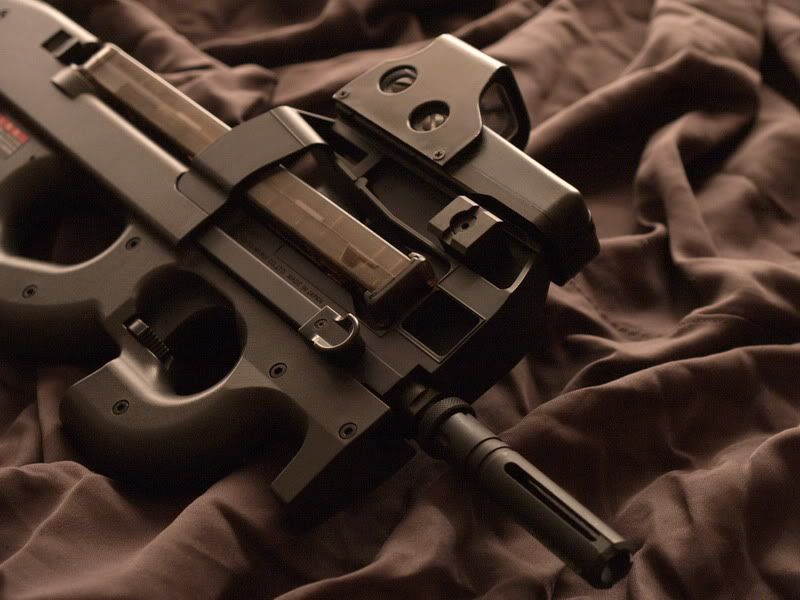

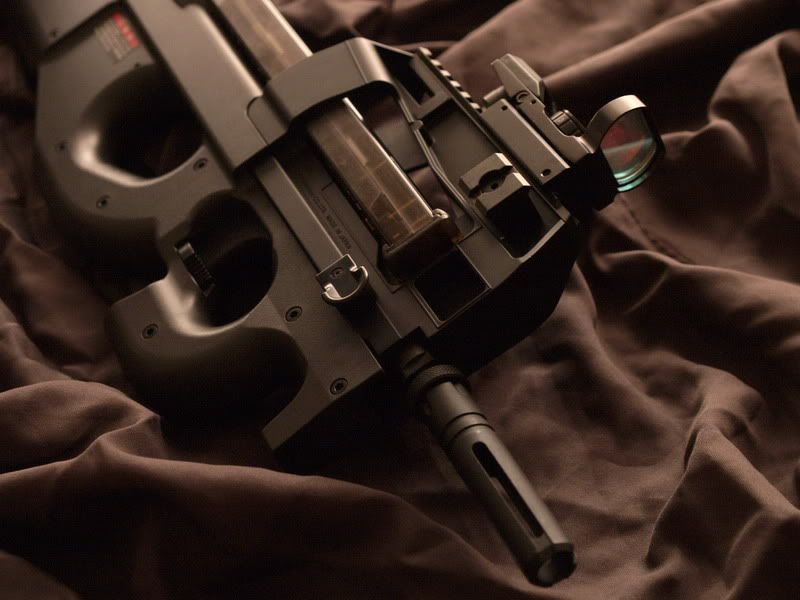

เห็นอีโอเทคแบบหน้าสั้นไปแล้ว มาลองดูแบบหน้ายาวเปรียบเทียบกันบ้าง อีโอเทคหน้ายาวตัวนี้เป็นของ Perfect Red Dot ดูแล้วมันน่าจะเป็นดอทไซท์ทรงอีโอเทคซะมากฝ่า ซึ่งมันก็เหมือนกับอีโอเทคแบบอื่นๆที่มีขายในท้องตลาดนั่นแหละ ดูเทียบกันเลยนะคับ ว่าหน้าสั้นกับหน้ายาว แบบไหนดูดีกว่ากัน แถมท้ายติดซีมอร์ให้ดูเปรียบเทียบอีกตัว เอาให้เห็นกันจะๆไปเลยว่า P90TRติดดอทแบบไหนสวยที่ซู้ดดดดดด อ้อ เซ็ทสุดท้ายเนี่ย ป๋มถอดท่อนอก(Outer Barrel)และไซเลนเซอร์ออก เปลี่ยนไปติดปลอกลดแสง(Flash Hider)ไทยทำฝีมือท่านเอ๊ดed (S.I.T. Team)แทน ป๋มว่าติดแล้วแจ่มกว่าปลอกลดแสงตัวแท้ของมันซะอีก หรือเพื่อนพ้องน้องพี่ว่าไงคับ ![]() ![]() ![]() ![]() |
![]() |
|
| parnthep | Apr 26 2008, 11:56 AM Post #6 |
|
Administrator
|

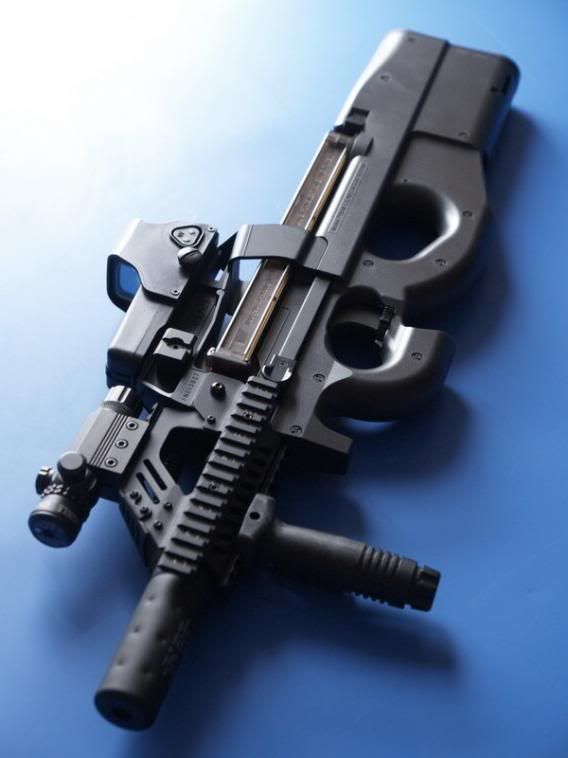

P90TR ตัวนี้รอคู่หูอยู่นาน นานจนมีคนมาทวงถามถึงภาพP90TRติดHolo Sight EOTech ป๋มเลยต้องจับP90TRแบบเดิมๆติดอีโอเทคถ่ายใช้หนี้ไปก่อน ต้นสัปดาห์ที่ผ่านมา สิ่งที่ป๋มรอคอยก็มาถึงในที่สุด มันคือรางไนโตรของเลย์แล็กสำหรับP90นั่นเอง ![]() สนนราคาค่าตัวเท่าไหร่ อย่าไปสนใจมันเลยคับ คิดแล้วเจ็บกระเป๋าซะเปล่าๆปลี้ๆ สู้มาดูว่าP90TRติดรางไนโตรแล้วสวยเพียงไหน กระทู้นี้ป๋มโชว์รูปเป็นหลักนะคับ ![]() ![]() ![]() ![]() Edited by parnthep, Apr 26 2008, 12:53 PM.
|
![]() |
|
| parnthep | Apr 26 2008, 12:00 PM Post #7 |
|
Administrator
|

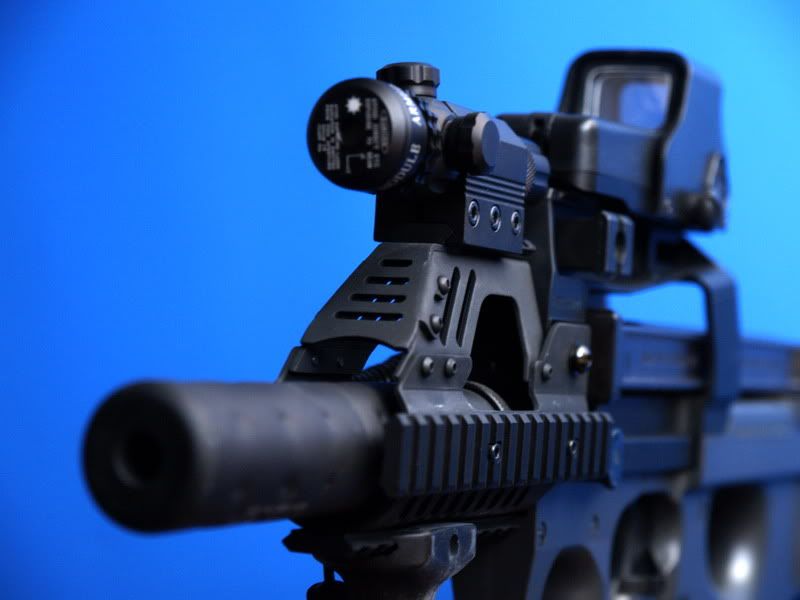

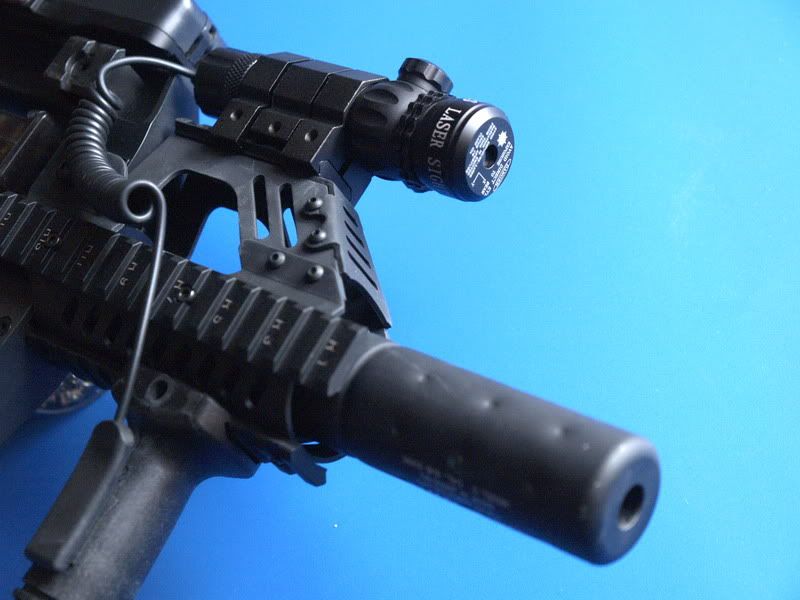

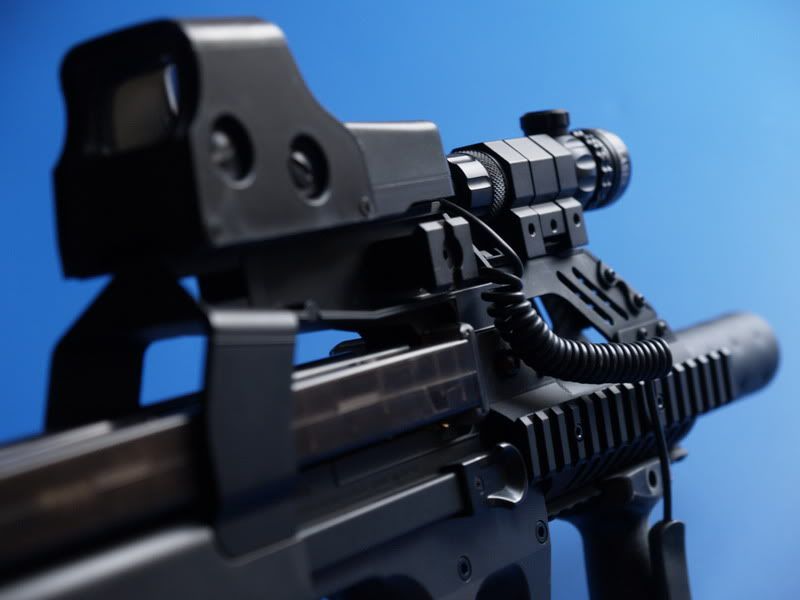

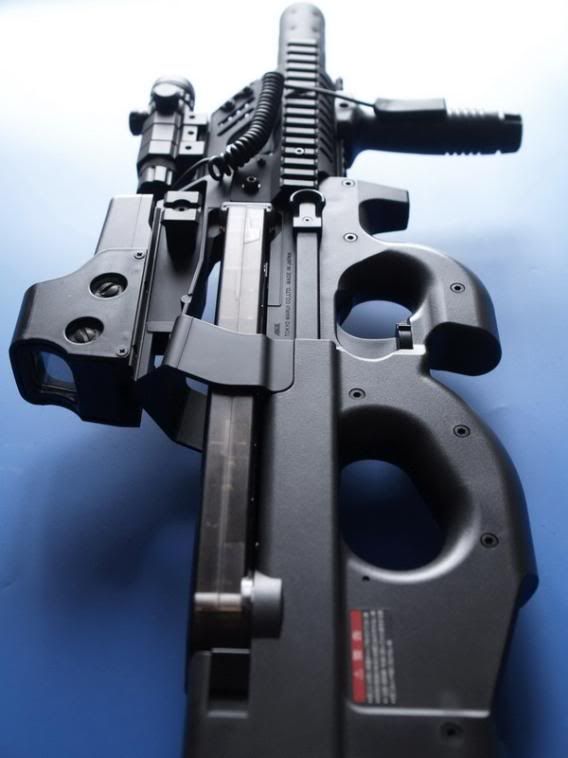

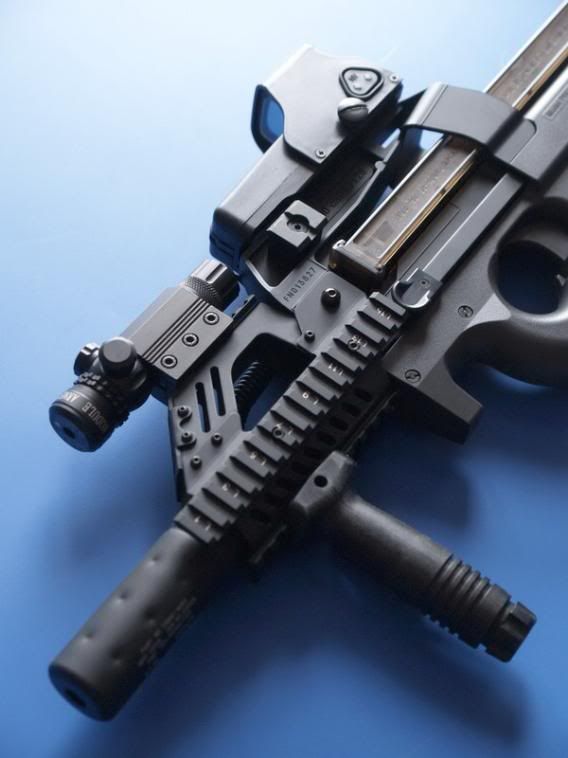

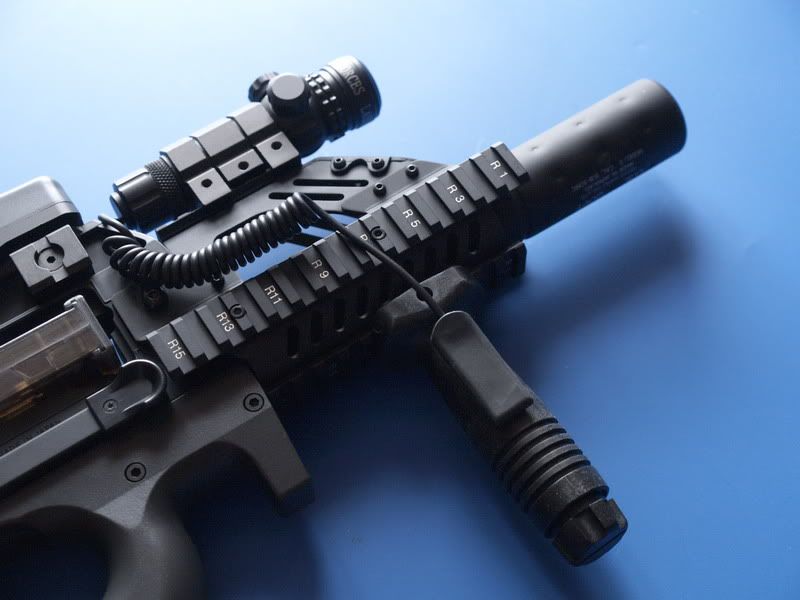

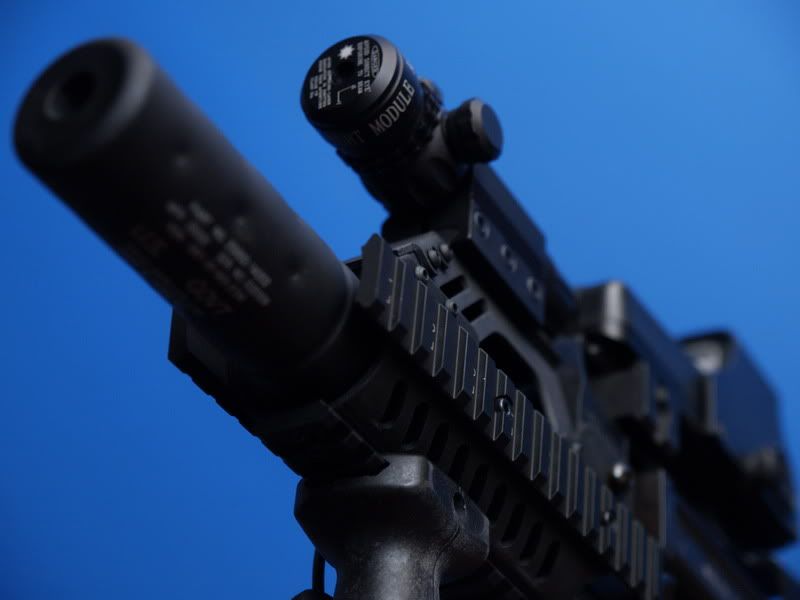

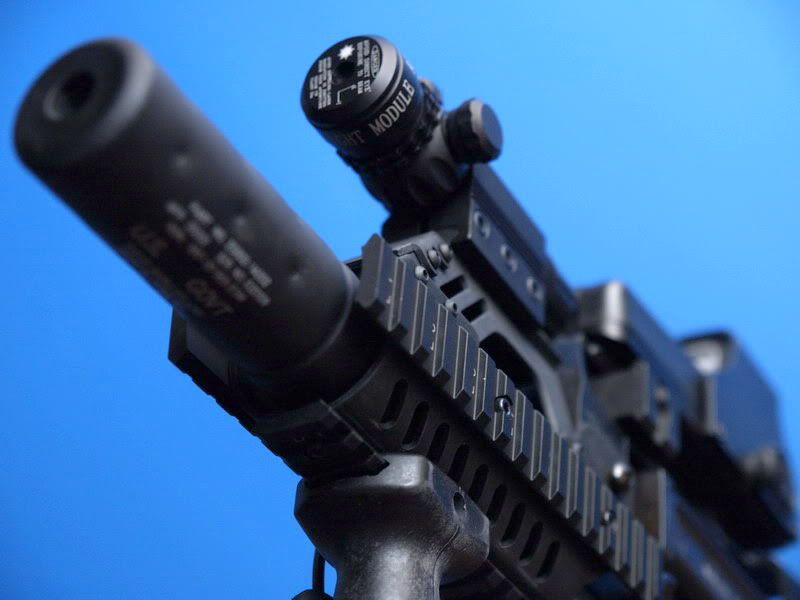

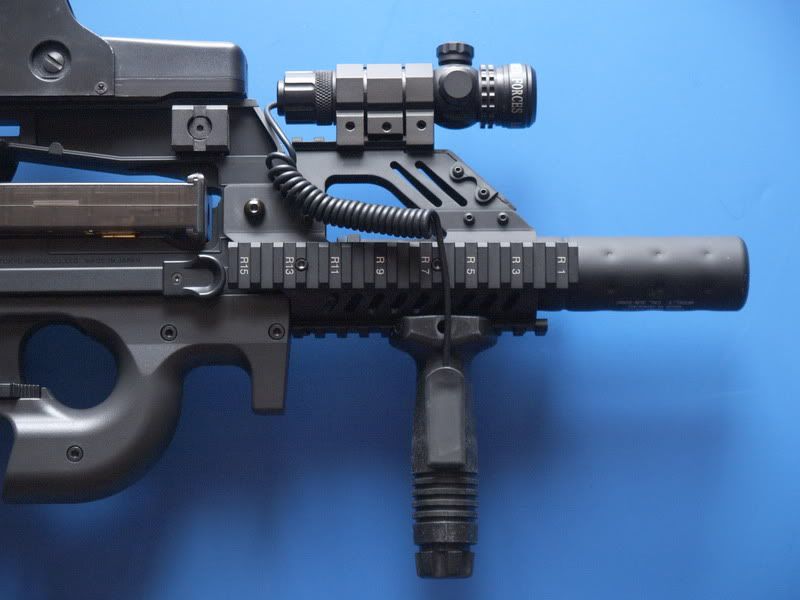

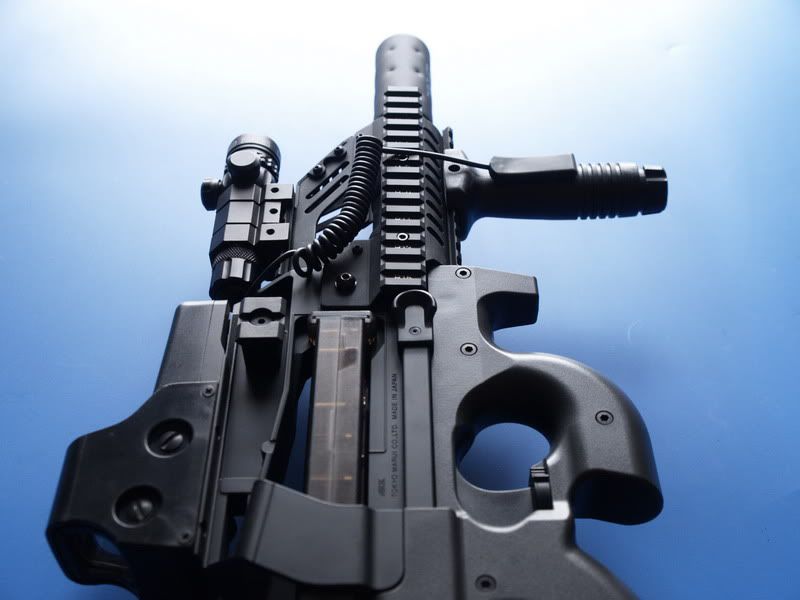

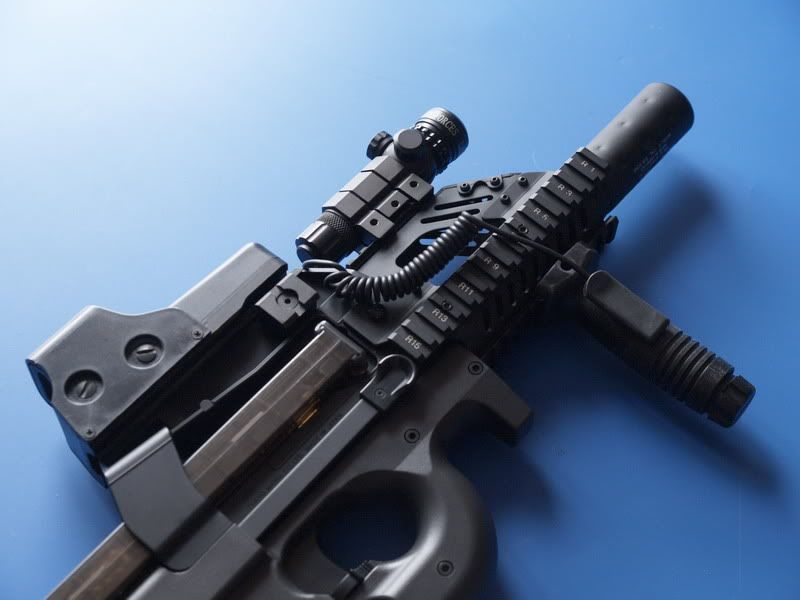

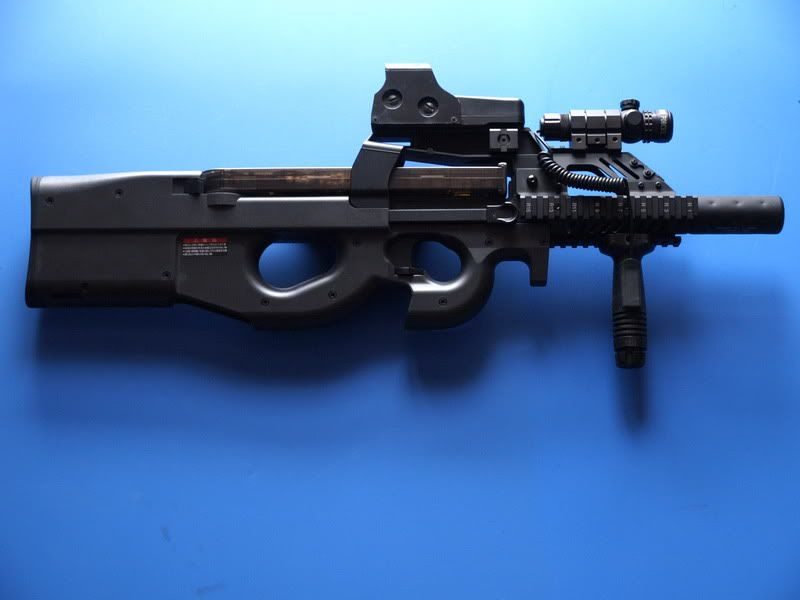

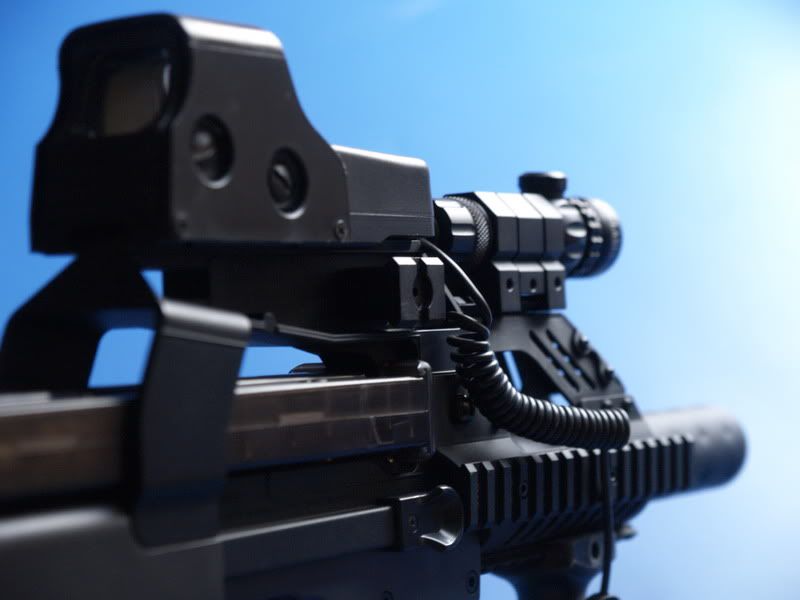

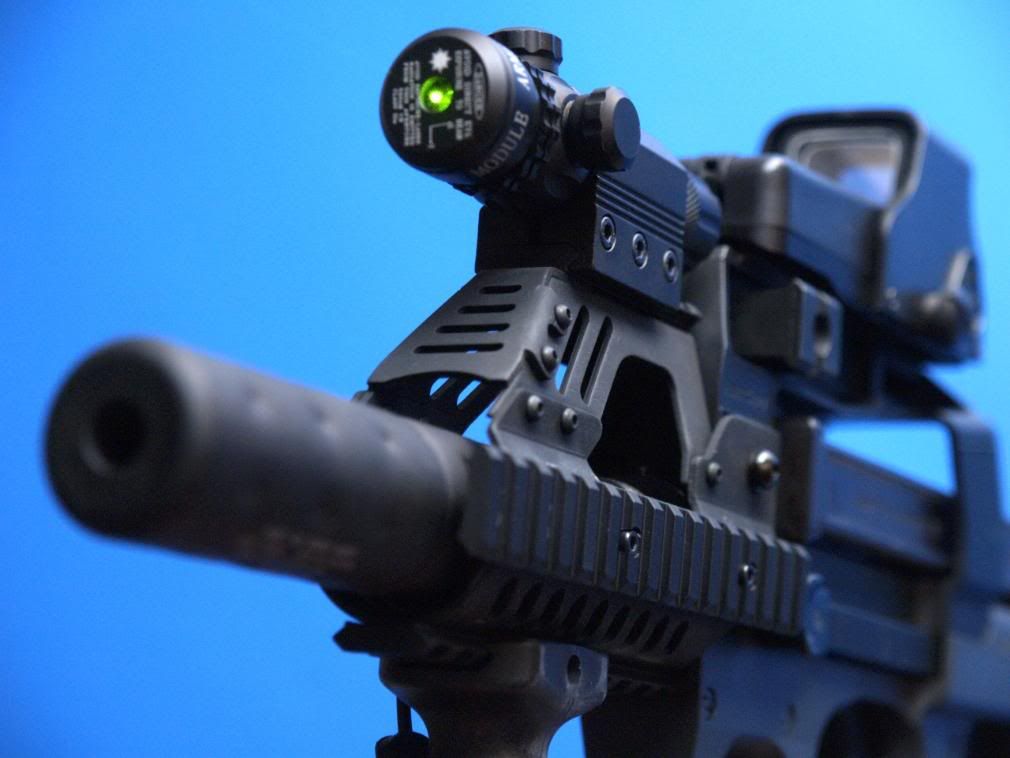

นอกจากรางไนโตรแล้ว สิ่งที่ติดเพิ่มมีอีกสองรายการคือLaser Sight สีเขียวปี๋ กับ Fore Grip อุปกรณ์ช่วยเล็งแบบทดอทไซท์ หลังจากลองใส่ดูหลายแบบ สุดท้ายมาจบที่ทรงอีโอเทคหน้ายาวของ Perfect Red Dot เพราะใส่แล้วดูดีมีชาติตระกูล แถมหล่อล่ำน่าเกรงขามขึ้นมาหลายกิโลขีดทีเดียว ![]() ![]() ![]() ![]() |
![]() |
|
| parnthep | Apr 26 2008, 12:03 PM Post #8 |
|
Administrator
|

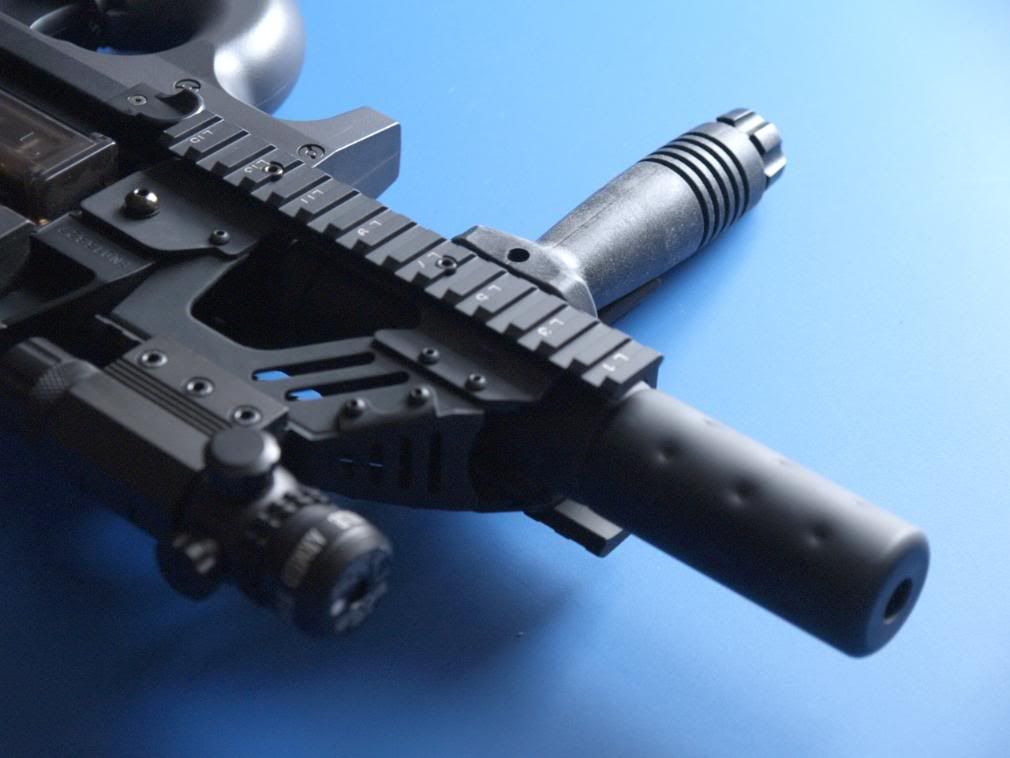

ป๋มมีปัญหากับการติดตั้งรางไนโตรนิดหน่อย แต่ก็หาวิธีแก้ไขได้ในที่สุด รางไนโตรจะมีจุดยึดอยู่สองจุดที่รางด้านข้าง เป็นสลักล็อคที่มาพร้อมน็อตยึดสองตัว ปัญหามันอยู่ที่ตอนใส่นี่แหละคับ เพราะมันจะติดรางข้างทำให้ใส่ไม่ได้ ถ้าฝืนใส่เข้าไป ตัวรางจะเบียดกับตัวปืนจนเกิดริ้วรอยเสียโฉมได้ ป๋มเลยพิจารณาอยู่พักใหญ่สุดท้าย ลองคลายน็อตล็อครางข้างคู่สุดท้าย วะหะหะ รางข้างขยายตัวกว้างขึ้น คราวนี้ใส่ได้แบบสบายๆเลยคับ ใส่รางล็อคน็อตยึดกับตัวบอดี้เรียบร้อย ค่อยมากวดน็อตล็อครางข้างให้เข้าที่ ![]() ![]() ![]() ![]() |
![]() |
|
| parnthep | Apr 26 2008, 12:06 PM Post #9 |
|
Administrator
|

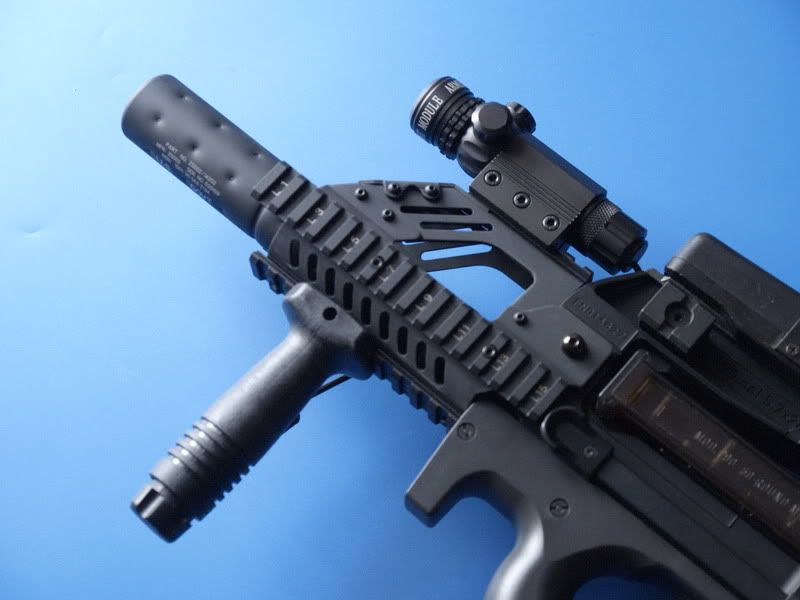

หลังจากแก้ปัญหาเรื่องการติดรางไนโตรได้แล้ว ปัญหาต่อมาที่เจอก็คือการใส่กริปหน้าคับ ปัญหาเหมือนเดิมคับ ใส่กริปหน้าเข้ารางใต้ลำกล้องไม่ได้ เพราะติดขอบยึดรางของกริปหน้า สุดท้ายป๋มต้องเอากริปหน้าไปฝนกับกระดาษทราย ให้ขอบยึดรางมันต่ำลง ฝนอยู่นานพองามแหละคับ สุดท้ายก็ใส่กริปหน้าได้ในที่สุด ![]() ![]() ![]() ![]() |
![]() |
|
| parnthep | Apr 26 2008, 12:12 PM Post #10 |
|
Administrator
|
โพรเจ็คพี90คงไม่มีรายการติดแม็กบอกซ์เพิ่มแน่ๆคับ เพราะป๋มว่าแค่รางไนโตรอย่างเดียว พี90ก็หล่อรากเลือดแล้วละคับ(เจ้าของรากเลือดนะคับ เพราะราคาของแต่งมันหูดับดีแต๊ๆ) รายการนี้ขอขอบคุณท่านฮัทช์เทพแห่งพี90จากทีม30+ที่มอบลายแทงขุมทรัพย์รางไนโตรให้ค้าบบบบบ ![]() ![]()
|
![]() |
|
