Blizzard SR Lights
Topic Started: Dec 10 2011, 01:51 PM (1,339 Views)
ZippoMan
Member Avatar

Nice Reaper! I hope to do lights later on down the road. I see that Acer Superworm Silicone Wire 16 Gauge 10 feet is a new product and won't ship until next week. I got in on their sale pricing! Looks like it will be sweet stuff. :)
Offline Profile Quote Post Profile

phatchantz
Member Avatar
seƱor member
thanks for the links ( ZippoMan / Reaper - I'm liking the ones in your pic )
Edited by phatchantz, Dec 16 2011, 08:39 PM.
Offline Profile Quote Post Profile

REAPER
Member Avatar
"It's only Money"

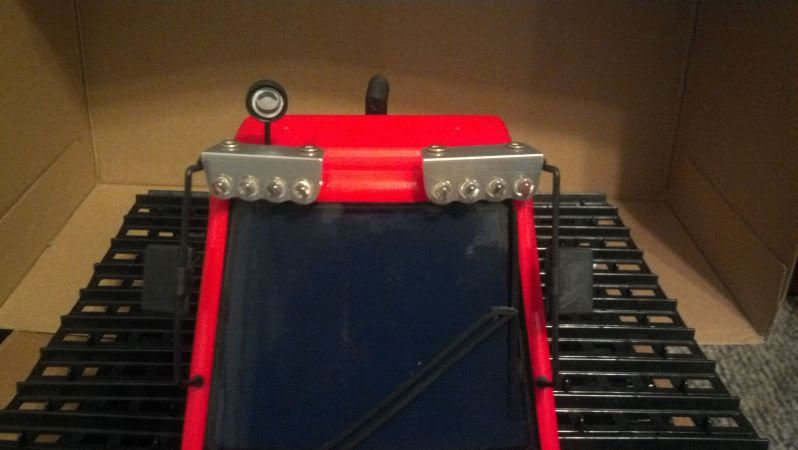

Thank you phatchantz, I just finished mounting them to the body and I am happy with how it turned out.
Posted Image
Offline Profile Quote Post Profile

ZippoMan
Member Avatar

Almost a PistenBully look only 2 more lights than a Bully! I am sure those look cool in the dark. I am thinking more of a roof rack full of lights. Not sure how or what yet..lol :)
Offline Profile Quote Post Profile

Itch
Member Avatar
Administrator
Here you go Blowout,

Use this:

http://led.linear1.org/led.wiz

- Enter in your battery pack voltage (7.2 typically)
- For forward voltage, if you are using white or super bright LEDS use (3.2)
- For forward current, if you are using white (20) or super bright (30).
- enter how many LEDs you want to wire up
- Select wiring diagram for output

It should give you an nice diagram with resistor values how to wire it up. It is very easy to do, and you can use a very thin wire, I use around 26 gauge depending on what you have available.
Offline Profile Quote Post Profile

ZippoMan
Member Avatar

Itch, cool website! That is great. I bookmarked it already. I am not sure if I will ever wire my own but that is nice to know.
Offline Profile Quote Post Profile

blowout
Member Avatar

Well I had a little extra time on my hands tonight so I threw some lights on that I picked up today from my LHS. this is a integy light bar with the traxxas led's from its summit light bar setup. The traxxas led's were a little brighter so i threw those in instead.

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Profile

ZippoMan
Member Avatar

Very cool!! I want lights now. Oh so many choices!! :D
Offline Profile Quote Post Profile

blowout
Member Avatar

I ripped apart the traxxas light bar and made each light head an individual head. going to put two facing back since you dont need much light for that but dont know if i want them on the roof or on the deck by the exhaust stack. the other hard part where to put the other two dont need much side light.
Offline Profile Quote Post Profile

SANTAVY1

Nice job on the lights! they look really cool. I made mine out of cap lights for your hats. I tore them apart and modified the base and wiring. It cost me a total of $2.59 for all the lights. What a bargin. I needed a low profile light bar so the boom would clear it when it swivels.
Attached to this post:
Attachments: blizzard_014.jpg (143.52 KB)
Attachments: blizzard_015.jpg (139.59 KB)
Edited by SANTAVY1, Dec 20 2011, 11:05 AM.
Offline Profile Quote Post Profile

Small Factory
Member Avatar
Formally Timmy2Tracks
Very nice!
Offline Profile Quote Post Profile

Oilcanman
Member Avatar

SANTAVY1
Dec 20 2011, 11:01 AM
Nice job on the lights! they look really cool. I made mine out of cap lights for your hats. I tore them apart and modified the base and wiring. It cost me a total of $2.59 for all the lights. What a bargin. I needed a low profile light bar so the boom would clear it when it swivels.
Your lights look great, I like the price of them also.

Oilcanman
Offline Profile Quote Post Profile
