Wheel re-moving guide.; Feel free to add your own.
Topic Started: Nov 25 2010, 08:40 PM (2,876 Views)
Deleted User
Deleted User

Sun star mk 2 escorts.

Posted Image

Its an easy One this, just slide a flat tool between the back of the wheel hub and sus strut and twist. (Or pull, but Things break when I pull on them. lol)

Posted Image

Posted Image

Also works on this rally car too.
Posted Image

Feel free to add your own or ask for a guide and i'll do my best to post One.

dean
Quote Post Goto Top

Deleted User
Deleted User

Sun Star mk3 Escort gl.

Posted Image

Sharp pointy tools needed here, to flick the middle out. Then undo the screw.

Posted Image

dean
Quote Post Goto Top

Deleted User
Deleted User

Ut Escort Cosworth st road car and Wrc road car.

I found the Best way is it to drop the bottom off.

There's 4 screws.
Posted Image

Once off the back wheels are on a bar, just twist and pull.
Posted Image

Posted Image

The fronts are quite britle and snap really easy.
I find it better to remove the two screws holding the axle on.
Then pulling the wheels off.

dean
Quote Post Goto Top

Administrator
Known for Excellent Japs eye

good idea dean, will get an autoart one up next time im in the mood to ruin a nice model :blub:
Posted Image
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

hi dose any one know how to take the wheels off a autoart volvo 850 t5r pls :WALL:
Quote Post Goto Top

Deleted User
Deleted User

taking wheels off auto art volvo 850r remove floor pan from body undoing screws .Posted Image

Uploaded with ImageShack.usPosted Image

Uploaded with ImageShack.us
Quote Post Goto Top

Deleted User
Deleted User

undo screws to drop the rear axel then using a pair of wire cutters grip the axel just behind the hub (brake disc)and then firmly sqeese cutters to pry the hub away from the metal shaft then the wheel will come off but the hub is bonded to wheels so the spokes will snap off if you try to split them just like mine did :LAUGHING: didnt mater to me as i was changing them anyway.Posted Image

Uploaded with ImageShack.usPosted Image

Uploaded with ImageShack.usPosted Image

Uploaded with ImageShack.us
Quote Post Goto Top

Administrator
Known for Excellent Japs eye

thats the method i use, you can get the hubs away from the wheels by carefully squeezing all the way around with some wide nose pliers and pulling, be careful.

also older autoart cars have plastic spindles not metal, so be extra careful as its easy to cut through with the snippers


Lala, if you arent using the original tires fancy donating them to a good home? :wink:
Posted Image
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

Pete
Nov 28 2010, 10:31 PM
thats the method i use, you can get the hubs away from the wheels by carefully squeezing all the way around with some wide nose pliers and pulling, be careful.

also older autoart cars have plastic spindles not metal, so be extra careful as its easy to cut through with the snippers


Lala, if you arent using the original tires fancy donating them to a good home? :wink:
:wink: no probs pete ill send them out to you bud :king:
Quote Post Goto Top

Administrator
Known for Excellent Japs eye

youre a diamond mate
Posted Image
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

Anyone know about the sunstar mk2 and rs1600i?
Quote Post Goto Top

Deleted User
Deleted User

Daragh K
Dec 2 2010, 06:59 PM
Anyone know about the sunstar mk2 and rs1600i?
Mk 2 escort I'm assuming? Check the top of the post ha!
Quote Post Goto Top

Deleted User
Deleted User

just took autoart scooby wheels off, they just pull off really but used a screwdriver behind so didn't break anything
Quote Post Goto Top

Deleted User
Deleted User

Sunstar mk3 Escort Rs1600i. Xr3, Xr3i use the same wheels with a different face.

Remove tyre.
Posted Image

Posted Image

Use and flat and strong tool and slid it in the space shown, then gently flick the wheels face off.
Posted Image

Then undo the screw.
Posted Image

dean
Quote Post Goto Top

Deleted User
Deleted User

kezzad999
Dec 2 2010, 07:17 PM
Daragh K
Dec 2 2010, 06:59 PM
Anyone know about the sunstar mk2 and rs1600i?
Mk 2 escort I'm assuming? Check the top of the post ha!
oh sorry im just so used to calling them just mk2s also i meant the ra\lly version same perhaps?
Quote Post Goto Top

Deleted User
Deleted User

Daragh K
Dec 3 2010, 04:53 PM
kezzad999
Dec 2 2010, 07:17 PM
Daragh K
Dec 2 2010, 06:59 PM
Anyone know about the sunstar mk2 and rs1600i?
Mk 2 escort I'm assuming? Check the top of the post ha!
oh sorry im just so used to calling them just mk2s also i meant the ra\lly version same perhaps?
Posted Image

This Ones the same, as the other mk2. Dont know about others as thats the only rally One I have. lol

dean
Quote Post Goto Top

Deleted User
Deleted User

Haha you did right asking then mate! You'd hate to ruin one of those!

I'd imagine it's the same but when I took mine off my standard mk2 i struggled and things were cracking so if you do have a go be careful!!
Quote Post Goto Top

Deleted User
Deleted User

does anyone know how to remove the wheels from autoart's toyota mrs?
Quote Post Goto Top

Deleted User
Deleted User

anyone know how to get the wheels off a ford street ka?

if so post some pictures up to see the progress!

cheers
Quote Post Goto Top

Deleted User
Deleted User

longdogs probs the best to ask on this 1 mate
Quote Post Goto Top

Deleted User
Deleted User

Escort Mk3

Posted Image

When the wheels are removed, as above, this is what your left with. To fit wider wheels, I simply file this down or cut it off completely.
Quote Post Goto Top

Deleted User
Deleted User

dryden1877
Jan 29 2011, 11:21 PM
anyone know how to get the wheels off a ford street ka?

if so post some pictures up to see the progress!

cheers
Only just seen this, if its the same as mine "Welly" they pull off. Same as the mk2 Escort /\ up there.

dean
Quote Post Goto Top

Deleted User
Deleted User

Is there any other way of fitting escort cossie wheels to a mk3 escort without glueing them?
Quote Post Goto Top

Deleted User
Deleted User

Hi I'm looking to remove wheels from a Norev capri 2.8i anyone done this?
Thanks in advance.
Jus
Quote Post Goto Top

Deleted User
Deleted User

capri

dismantle car strip down suspension the wheels are screwed on from behind nice & easy just watch the door hingres on strip down there quite fragile broke 2 sets my self
Quote Post Goto Top

Deleted User
Deleted User

anyone know how to take the wheels off a 1953 Ford F-100 Pick-Up?
Quote Post Goto Top

Deleted User
Deleted User

dryden1877
Mar 9 2011, 08:05 PM
anyone know how to take the wheels off a 1953 Ford F-100 Pick-Up?
:WALL: you pull them off!! :punch:
Quote Post Goto Top

Deleted User
Deleted User

Anyone now how to get wheels of a mk1 escort?
Quote Post Goto Top

Deleted User
Deleted User

What One?

Take the tyre off and see who the wheel is made.

dean
Quote Post Goto Top

Deleted User
Deleted User

Its a minichamps mk1 mate! Tried to take the tyre off but it was stiff as feck!
Quote Post Goto Top

Deleted User
Deleted User

Red road car?

dean
Quote Post Goto Top

Deleted User
Deleted User

Pick the wheel trim out and unscrew it
Quote Post Goto Top

Deleted User
Deleted User

Yeah its the red one guys!

Cheers kez mate!
Quote Post Goto Top

Administrator
Known for Excellent Japs eye

if at first you dont succeed...
Posted Image
Posted Image
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

Give up and leave it... :GRIN: aint that right pete! Haha
Quote Post Goto Top

Deleted User
Deleted User

Red ones, tyre off and remover the wheel trim, srew is located under.

dean
Quote Post Goto Top

Deleted User
Deleted User

Cheers longdog, just found the screw! Now I know how its done, wheels back on save up for alu wheels! Lol
Quote Post Goto Top

Deleted User
Deleted User

Thanks to Juju.
Ayrton
Aug 21 2011, 10:02 AM
got tyre off. then ther are severial kinks in the wheel
then in the middle of the kink there is the seal.
is it that seal or is a hidden seal somewhere and is it hard to remove the wheels ccus i still cant get them
f****in wheels off there pissing me off
Right mate i have just removed a wheel from my Morris in les than a minute lol !

heres how i did it firt i removed the tyre to see what was underneath and theres no join there so you can leave the tyres on

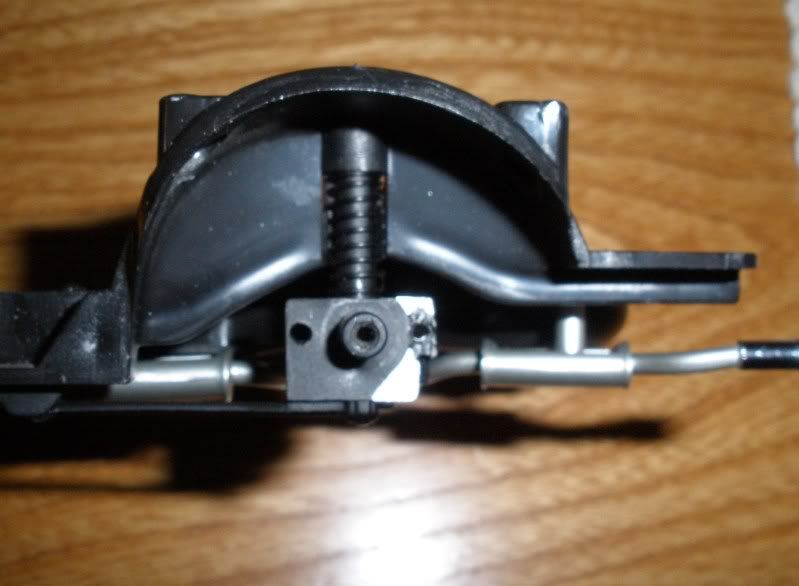

what you have to do is insert a craft knife between the large flange / brake backplate and the wheel centre and twist the craft knife blade as you pull and turn the wheel and it popps straight off - what your left with is a sleeve on the stub axle with a screw in the end remove the screw and the sleeve
heres a couple of pics for you

Posted Image
Posted Image
Posted Image
Posted Image

dean
Quote Post Goto Top

Deleted User
Deleted User

re-moving wheels of a 1-18 land cruiser by road sig/yatming.
easy one these are just pull or if not ease a flat headed srewdrive between the race and hub and twist and itl pop of. this also seems to be the way with most lol.

GMP wheel removeing. most models just the same srew driver method,same with most ertls.
Quote Post Goto Top

Deleted User
Deleted User

how to remove land rover diacovery 2 wheels

the just pull off
some maybe a bit stiff so get a flathead and pull while the flat head is on the brack disks

the rear axle is the most delicate as i know this from my disco :(
Quote Post Goto Top

Deleted User
Deleted User

solido use a pic system on there disco same on the jeep and maybe a few others so they can be trick to remove so best thing to do is as above but if your looking to put the wheels back on you may have a bit of trouble.
Quote Post Goto Top

Deleted User
Deleted User

how do you remove ertl wheels
meaning range rover voque
Quote Post Goto Top
