unreal; doors
Topic Started: Nov 30 2008, 04:35 PM (139 Views)
Scouseman
Ste
[ *  *  * ]
anone know a tut on doin doors in unreal plse , how evryone doin with theirs , dont really like this program :'(
Offline Profile Quote Post Goto Top

adam
Member Avatar
Game Design Guru
[ *  *  *  *  *  * ]
ok so this tutorial should help the princibles behind it are the same for doors as they are for a single floor elevator.

thedoor will be a sliding door moving either left to right or up and down the choice is yours so here we go.

1./ start by building your level ive quickly thrown 1 together for demo purposes...
Posted Image

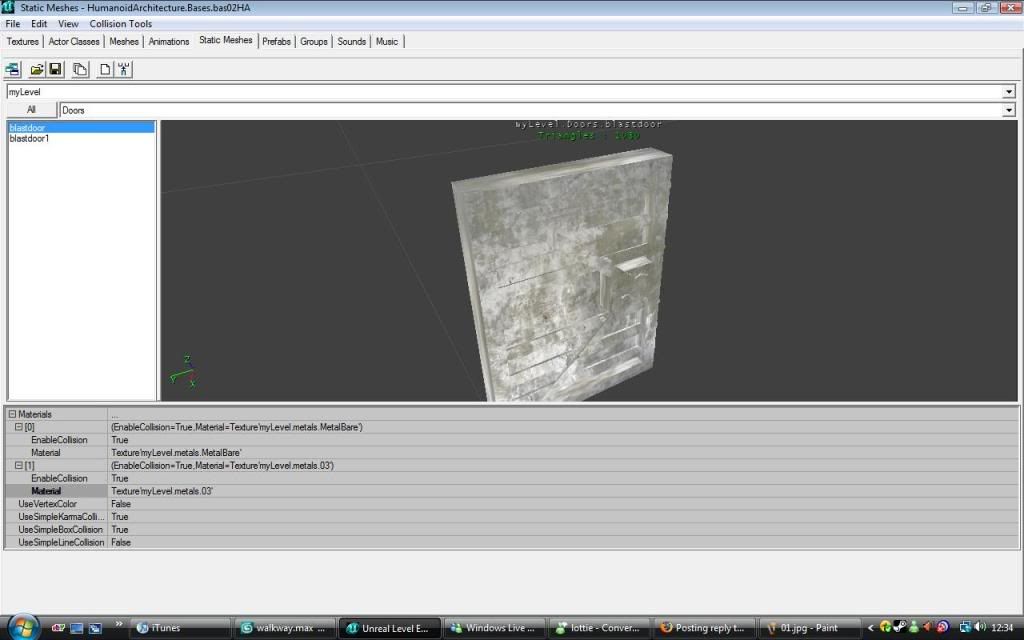

2./now you need to find the mesh you want to use as a door in the static mesh browser...
Posted Image

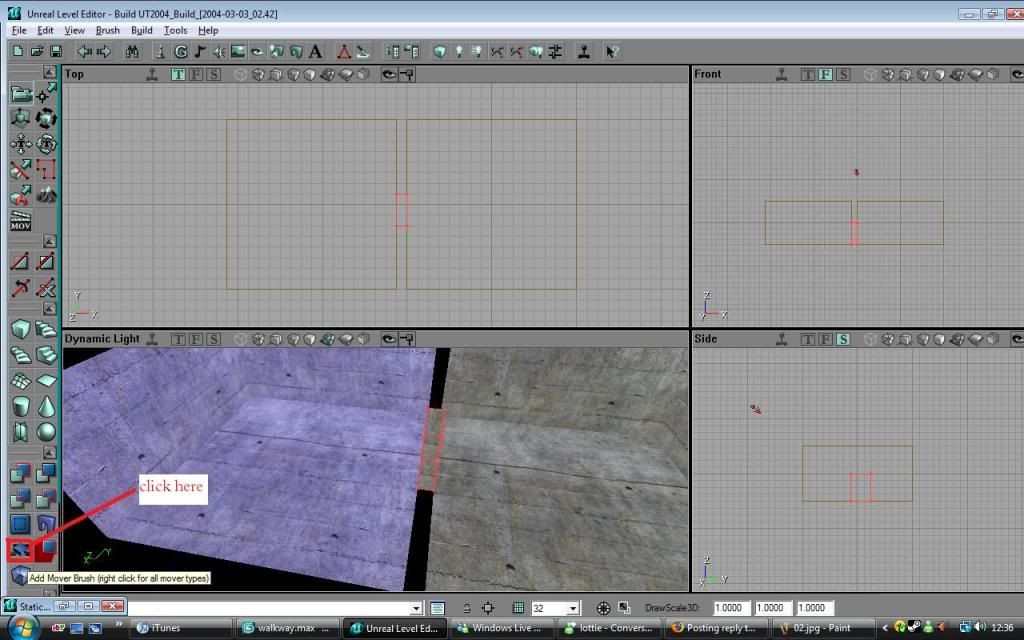

3./so now you have the staticmesh selected in the browser go back to the main unreal window and you want to click the "ADD MOVER" button.
Posted Image

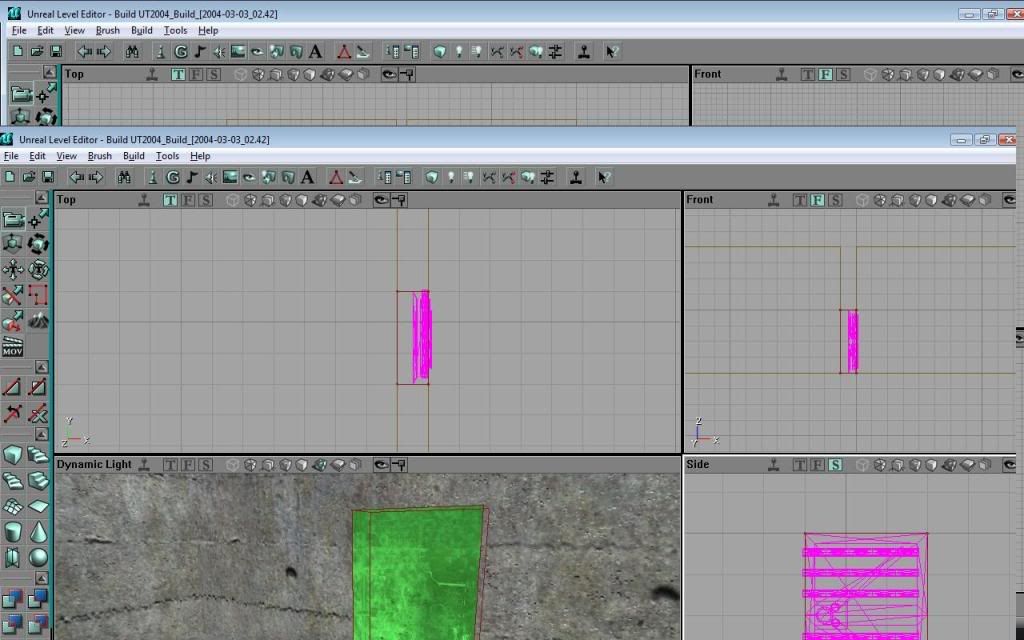

4./Once you have clicked the "ADD MOVER" button the mesh will appear in a lovely pink colour this is a mover position it where you would like your door to be in the "closed" position.
Posted Image

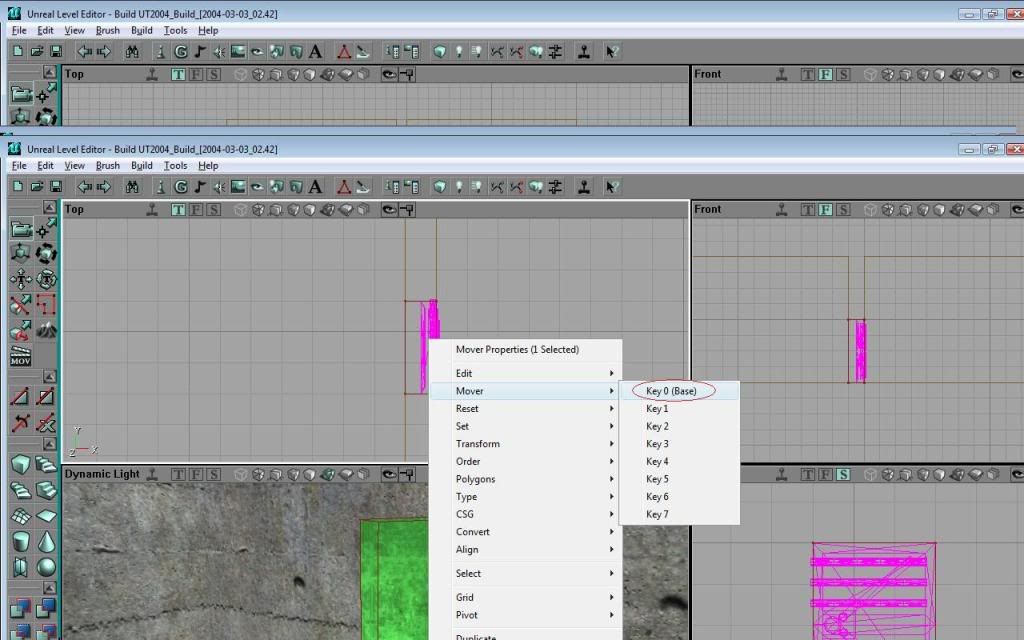

5./ once the door is correctly positioned right click it and choose "MOVER" and then click key0 this sets the doors closed position.
Posted Image



6./ Right click the door again and this time choose "MOVER" and click on key1,
Posted Image

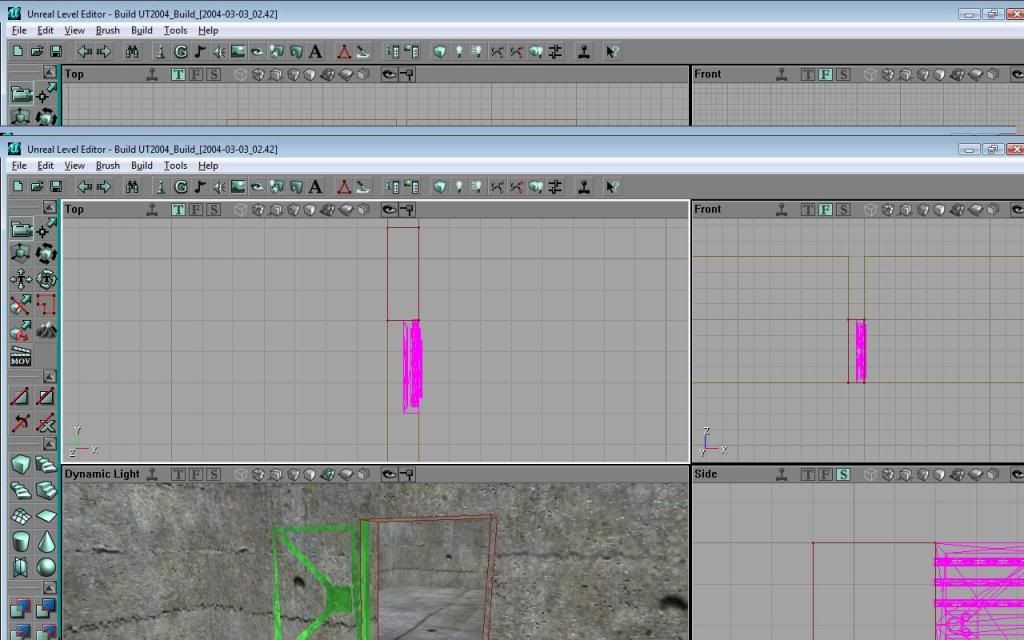

THEN move the door to the open position.
Posted Image


7./ now right click the door 1 last time and choose "MOVER" and click on key0 this will reset the door back to the closed position rebuild the level and play to check it works....


any issues send me a message on msn
adam
Edited by adam, Dec 1 2008, 01:04 PM.
