IS300 Project
Topic Started: Jul 20 2010, 09:16 PM (776 Views)
tommygunzgrafix
Member Avatar

Ok, so my first body I did was a silver IS300. My 1:1 is a IS300 so I tend to like this body lol...

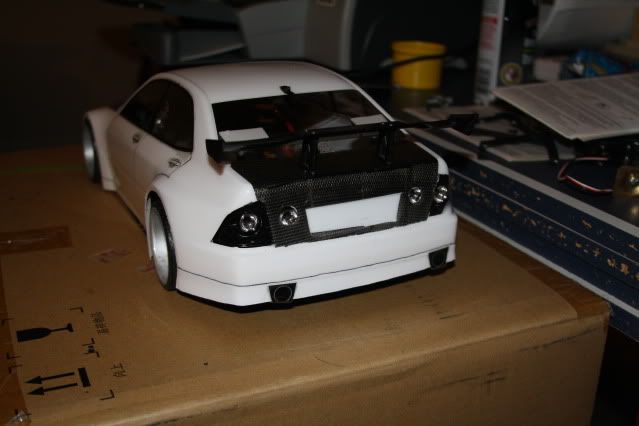

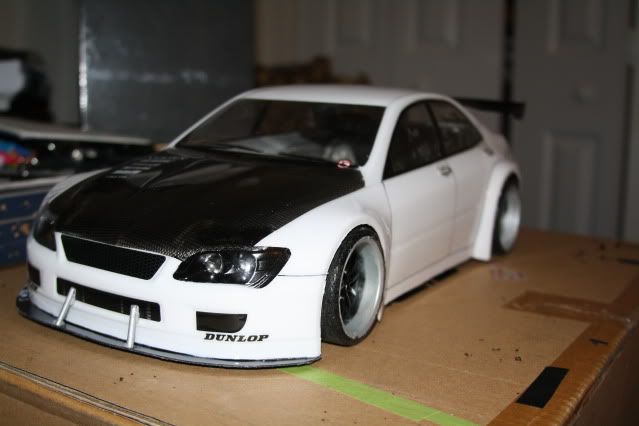

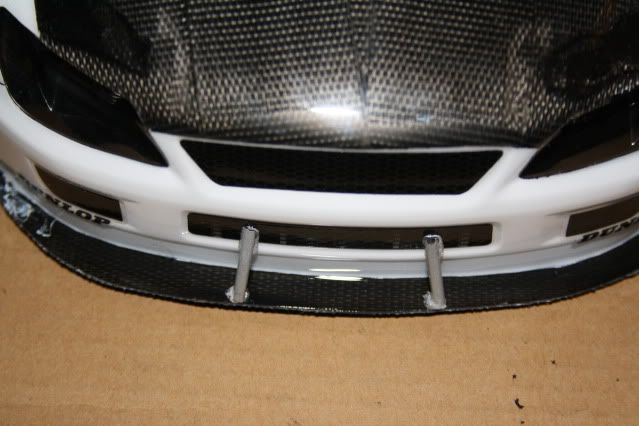

I have some cleaning up to do still on the windows, I want to add a window sticker to the back glass (working on this). I made a custom carbon fiber front lip from the left over lexan trimmings. I think it turned out pretty good. There is a little glue on the top that I need to clean off as well. Going to try to clean all this up tomorrow and get some pics outside soon.

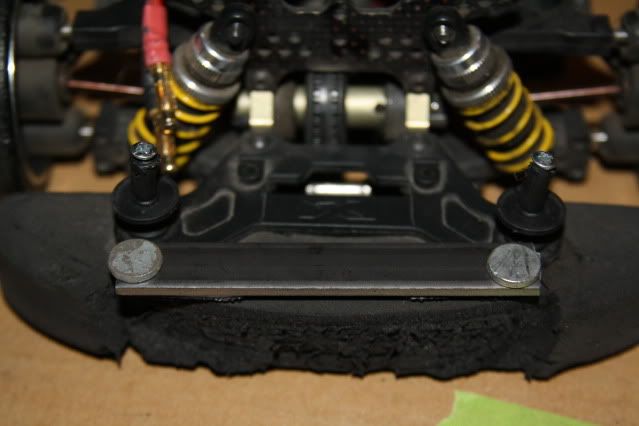

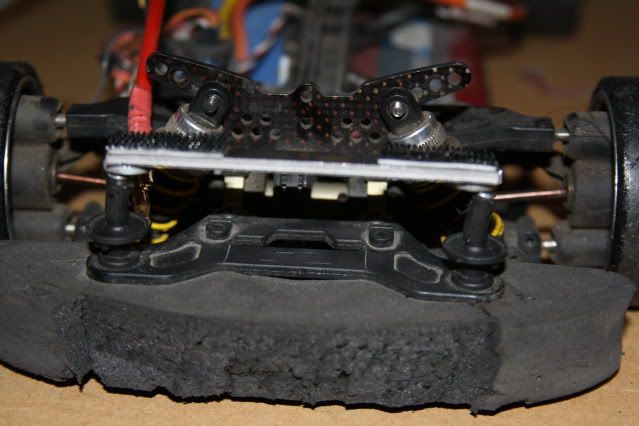

This time I have also made my own stealth mount so no more body posts (pictures at very end). For this I cut down my body posts, got a 4x40 screw thats 1/2" in length and drilled it into the the post. This allows me unscrew it to raise the level for different bodies. From there I mounted 2 rare earth magnets on the top of these. On the inside of the body sits a metal plate that attaches to the magnets. The body appears to be really secure I am sure it wont take a really hard hit but I plan this to be my comp only body so it should not get slammed.

On to the pics
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

Posted Image
Posted Image
Offline Profile Quote Post Goto Top

Drifter_X

Nice , like the body lines. How is the body mounts working out?
Offline Profile Quote Post Goto Top

burnsmonkey
Member Avatar

Is the CF look layered? How did you get that effect of a V?
Offline Profile Quote Post Goto Top

tommygunzgrafix
Member Avatar

burnsmonkey
Jul 20 2010, 10:06 PM
Is the CF look layered? How did you get that effect of a V?
ya its a 3 part process. first you lay down a a couple coats of smoke/window tint paint. Then you put down some double sided carpet tape (gives it the fiber look), than back it with a black. I got the "v" in it by the way I applied the carpet tape.
Offline Profile Quote Post Goto Top

burnsmonkey
Member Avatar

Nice, man thats a lot of detail.
Offline Profile Quote Post Goto Top

tommygunzgrafix
Member Avatar

Its got a few blemishes but learning more with each body, so next one should be great unless I add more detail lol
Offline Profile Quote Post Goto Top

Drifter_X

You'll be adding more, thats the way it always works.
Offline Profile Quote Post Goto Top

tommygunzgrafix
Member Avatar

Ya, already thinking about next body and maybe doing a full interior, some canards on the front bumper, vertical spoilers on/under rear bumper. Need to get started this is going to take a long time lol
Offline Profile Quote Post Goto Top

Swatsn1per
Member Avatar

Does that body have Light Buckets? Or are my eyes fooling me?
Offline Profile Quote Post Goto Top

TLTRyan
Member Avatar

Looks good. I have always liked the is300.

What brand body is it? Never been a fan of the widebody look but it's growing on me. Before I ordered my mustang body I searched for the Tamiya is300 but being discontinued it was just to much$
Offline Profile Quote Post Goto Top
